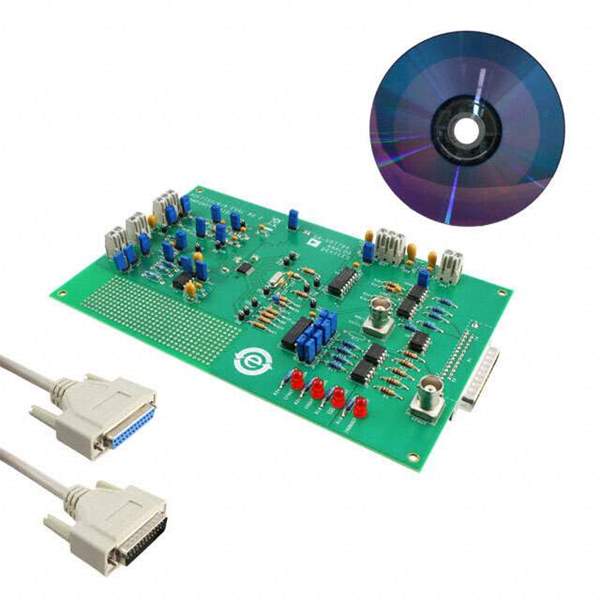

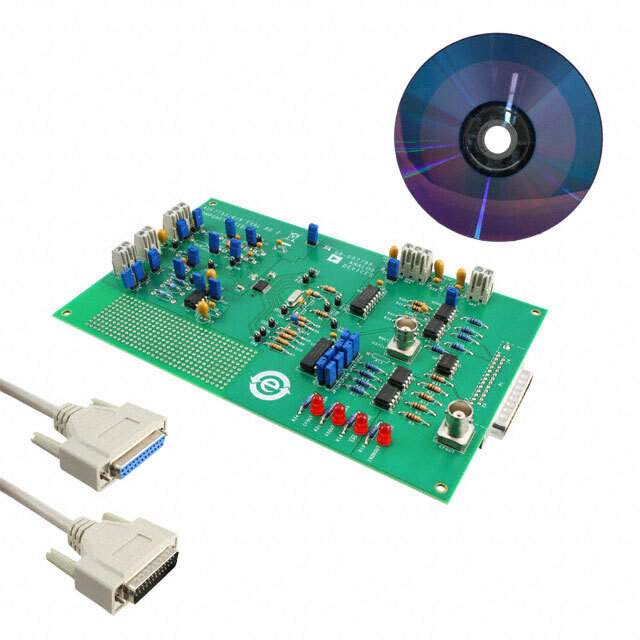

EVAL-ADE7753ZEB Evaluation Board from Analog Devices Inc.

The EVAL-ADE7753ZEB from Analog Devices Inc. is a high-precision evaluation board designed for testing the capabilities of the ADE7753 single-phase multifunction metering IC. This evaluation board is an essential tool for engineers and designers who require accurate energy measurement in applications such as residential and commercial energy meters, industrial instrumentation, and energy monitoring systems.

At the heart of the EVAL-ADE7753ZEB is the ADE7753 chip, which integrates all the necessary functions for active, reactive, and apparent energy measurement. The chip features a high-accuracy ADC, a digital integrator, reference circuitry, and a flexible serial interface, all of which contribute to its exceptional performance in energy measurement tasks.

The evaluation board is equipped with a variety of features that facilitate a comprehensive assessment of the ADE7753 IC. It includes onboard shunt resistors for current sensing, which allows users to directly connect the board to a load for testing. Additionally, the board provides access to all the pins of the ADE7753, enabling users to fully explore the functionality of the chip.

For ease of use, the EVAL-ADE7753ZEB can be interfaced with a PC via a serial port. Analog Devices provides software that can be used in conjunction with the evaluation board, allowing users to read data from the ADE7753, configure its registers, and analyze the chip's performance in real-time. This software is an invaluable tool for both development and debugging purposes.

Furthermore, the EVAL-ADE7753ZEB comes with comprehensive documentation, including a user guide, schematic diagrams, and application notes. This documentation provides critical information that can help users quickly get up to speed with the board's features and capabilities, facilitating a smoother development process.

In summary, the EVAL-ADE7753ZEB is a robust evaluation platform that provides engineers with a detailed insight into the performance and features of the ADE7753 energy metering IC. Whether for prototyping or educational purposes, this evaluation board is an indispensable asset for any project involving precise energy measurement.
