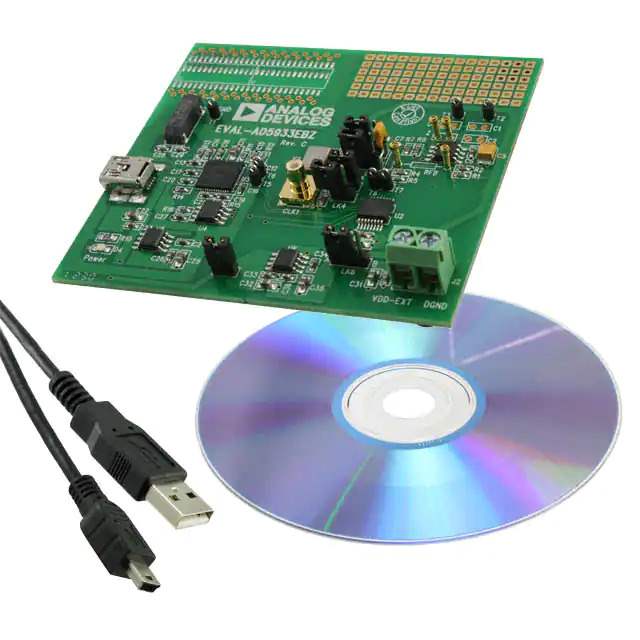

EVAL-AD5933EBZ Evaluation Board from Analog Devices Inc.

The EVAL-AD5933EBZ is a high-precision impedance converter system evaluation board from Analog Devices Inc., designed to simplify the assessment of the AD5933, a sophisticated impedance-to-digital converter integrated circuit (IC). This powerful tool is specifically engineered for engineers and researchers who require an efficient way to perform complex impedance measurements in applications such as bio-impedance analysis, impedance spectroscopy, and material property characterization.

This evaluation board facilitates the direct evaluation of the AD5933 IC's capabilities, including its ability to perform frequency sweeps, which is essential for analyzing the frequency response of various types of physical sensors and systems. The board is equipped with an onboard system oscillator, which eliminates the need for external components to perform the frequency sweep functions.

The EVAL-AD5933EBZ is user-friendly and connects to a PC via a USB interface. The accompanying software allows users to control the AD5933 and easily collect data from the IC. The software environment provides an intuitive graphical user interface (GUI) that guides the user through the setup process, data collection, and analysis, making it accessible for both seasoned professionals and those new to impedance measurement technology.

Key features of the EVAL-AD5933EBZ include:

• Direct access to the AD5933 IC's features and functions
• Onboard system oscillator for standalone frequency sweep capability
• USB interface for seamless connection and data transfer to a PC
• Intuitive GUI software for easy operation and data analysis
• Compatibility with a wide range of impedance sensors and systems
• Ability to perform accurate impedance measurements over a frequency range of 1kHz to 100kHz

The EVAL-AD5933EBZ is a versatile solution for a wide array of applications, from medical diagnostics to environmental sensing and beyond. It provides a rapid, accurate, and efficient method for impedance data collection and analysis, making it an essential tool for any professional working in fields that require precise impedance measurements.
