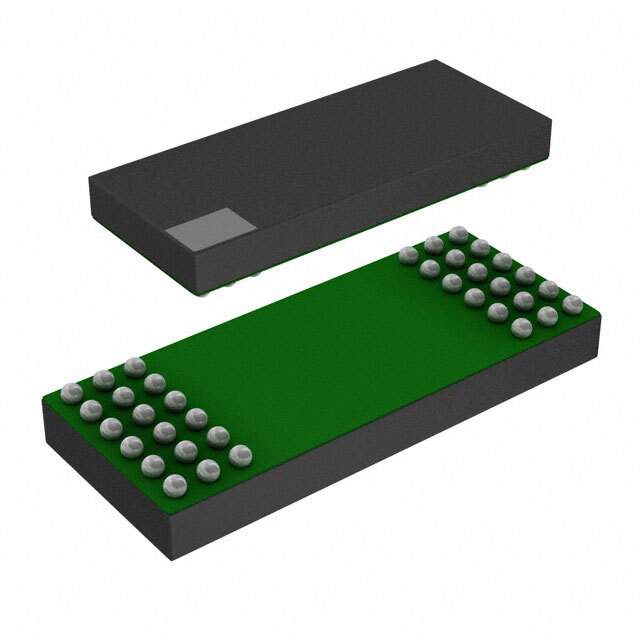

The LTM2895HY#PBF is a high-performance, isolated USB μModule transceiver from Analog Devices Inc. This innovative product is designed to provide a safe and reliable USB data communication interface in environments where isolation is a critical requirement. The device features an integrated, isolated power supply, which eliminates the need for separate isolated DC/DC converters, simplifying design and reducing board space.

Key Features

• Isolation: The LTM2895HY#PBF offers 2.5kV RMS galvanic isolation between the USB interface and the host controller, which is essential for protecting sensitive electronic components and user safety in high-voltage applications.
• Data Transfer: It supports full-speed (12Mbps) USB communication, ensuring efficient data transfer while maintaining isolation.
• Auto-Configuration: The device automatically configures itself as a USB bus-powered device, which simplifies the setup process and reduces the need for additional software drivers.
• Integrated Power Supply: With an integrated, isolated DC/DC converter, the LTM2895HY#PBF provides both isolated power and data transfer over a single USB cable, streamlining the design process.
• Temperature Range: It operates over an industrial temperature range of -40°C to 85°C, making it suitable for harsh environments.

Applications

The LTM2895HY#PBF is ideal for a wide range of applications where isolation is necessary to ensure system integrity and user safety. These applications include:

• Industrial control systems
• Medical equipment with patient contact
• Test and measurement devices
• Isolated sensor interfaces
• Noise-sensitive communications equipment

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the LTM2895HY#PBF is no exception. The device is manufactured to the highest standards to ensure consistent performance and longevity, even in the most demanding conditions.

Conclusion

The LTM2895HY#PBF from Analog Devices Inc. represents a robust and versatile solution for applications requiring USB connectivity with stringent isolation requirements. Its integrated features and ease of use make it an excellent choice for designers looking to enhance the safety and integrity of their systems.
