Product Overview: HMC372LP3E from Analog Devices Inc.

The HMC372LP3E is a high-quality, GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC PHEMT amplifier designed and manufactured by the renowned Analog Devices Inc. This versatile amplifier operates within the SMT (Surface Mount Technology) category, making it a suitable component for a wide range of electronic applications.

Engineered to provide exceptional performance, the HMC372LP3E operates over a broad frequency range from 0.4 GHz to 3.8 GHz. This makes it an ideal choice for use in various RF and microwave applications, including point-to-point radios, point-to-multipoint radios, VSAT, and military & space equipment. Its wide frequency range ensures compatibility with multiple communication standards and allows for flexibility in design.

The amplifier boasts a high gain of 13 dB with an output power of +29 dBm at 1 dB compression, providing a robust signal amplification that enhances the performance of the overall system. The HMC372LP3E also features a noise figure of 4 dB, ensuring low-noise operation and maintaining signal integrity in noise-sensitive applications.

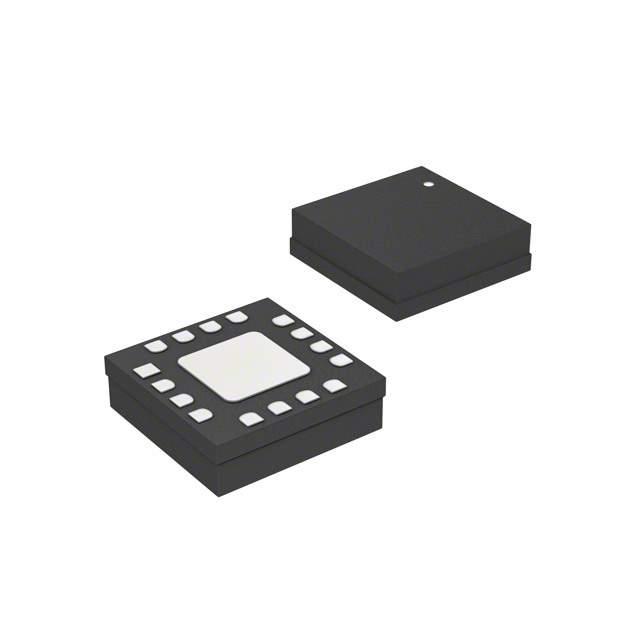

Packaged in a compact 3x3 mm QFN package, the HMC372LP3E is designed to be space-efficient, making it an excellent choice for designs where board space is at a premium. Its surface-mount design simplifies the assembly process and allows for easier integration into a wide variety of systems.

The device is also characterized by its 50 Ohm matched input/output which eliminates the need for external RF matching components, further reducing the bill of materials and simplifying the design process. Additionally, the HMC372LP3E is rated for a supply voltage of +5V, aligning with common system power rails.

In summary, the HMC372LP3E from Analog Devices Inc. is a high-performance, easy-to-use RF amplifier that provides designers with a flexible and powerful solution for a multitude of RF amplification needs. Its combination of wide frequency range, high gain, and compact packaging makes it an excellent choice for modern communication and defense-related applications.
