Same model may have multiple batches, images only for reference.

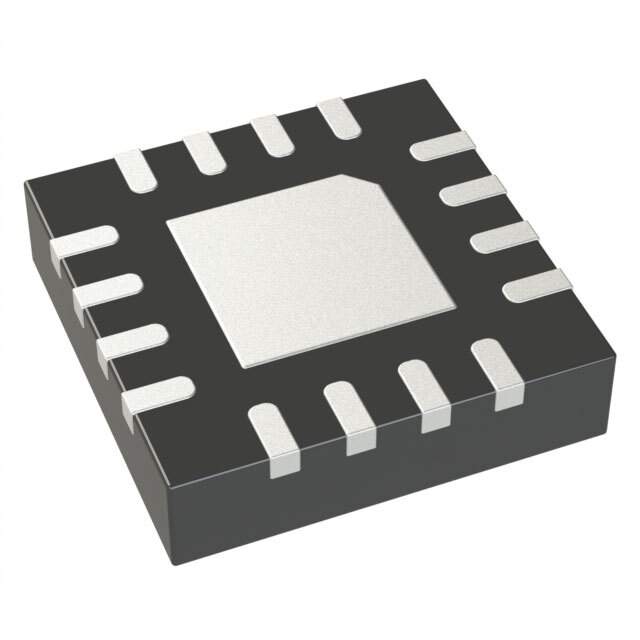

ADG1211YCPZ-500RL7 Real Image
Same model may have multiple batches, images only for reference.

ADG1211YCPZ-500RL7

Part No ADG1211YCPZ-500RL7
Manufacturer Analog Devices Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SW SPST-NCX4 190OHM 16LFCSP / 4 Circuit IC Switch 1:1 190Ohm 16-LFCSP (3x3)
Datasheet
ADG1211YCPZ-500RL7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr Analog Devices Inc.
Package Tape & Reel
Switch Circuit SPST - NC
Number of Circuits 4
On-State Resistance (Max) 190Ohm
Channel-to-Channel Matching (ΔRon) 2.5Ohm
Voltage - Supply, Single (V+) 5V ~ 16.5V
Voltage - Supply, Dual (V±) ±4.5V ~ 16.5V
Switch Time (Ton, Toff) (Max) 130ns, 115ns
-3db Bandwidth 1GHz
Charge Injection -0.3pC
Channel Capacitance (CS(off) , CD(off) ) 1.1pF, 1.2pF
Current - Leakage (IS(off) ) (Max) 100pA
Crosstalk -90dB @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-WFQFN Exposed Pad, CSP
Supplier Device Package 16-LFCSP (3x3)
Base Product Number ADG1211
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1339331-ADG1211YCPZ-500RL7
Ultra Librarian 3D Model Ultra Librarian ADG1211YCPZ-500RL7 CAD Model

Description

ADG1211YCPZ-500RL7 - High-Performance Analog Switch from Analog Devices Inc.

The ADG1211YCPZ-500RL7 is a cutting-edge analog switch developed by Analog Devices Inc., a renowned leader in the semiconductor industry. This product is designed to deliver exceptional performance and reliability for a wide range of applications, including data acquisition systems, communication systems, and industrial automation.

At the heart of the ADG1211YCPZ-500RL7 lies a single-pole, single-throw (SPST) switch configuration that ensures efficient signal routing with minimal signal distortion. The device operates with a single supply voltage ranging from +3 V to +5 V, making it versatile for various electronic circuits and systems.

Key Features:

  • Low On-Resistance: The switch offers a low on-resistance (typically around 0.8 ohms), which translates to minimal signal loss and reduced power consumption.
  • High Off-Isolation: Excellent off-isolation ensures that signals are effectively blocked when the switch is in the off state, preventing unwanted crosstalk.
  • Fast Switching Times: With fast switching times (tON and tOFF), the ADG1211YCPZ-500RL7 can handle high-frequency signals with ease, making it suitable for multiplexing and demultiplexing applications.
  • Extended Temperature Range: The device is designed to operate over an extended industrial temperature range, ensuring reliable performance under harsh conditions.
  • Compact LFCSP Package: The ADG1211YCPZ-500RL7 is available in a compact 16-lead LFCSP (Lead Frame Chip Scale Package), saving valuable board space without compromising on functionality.

The ADG1211YCPZ-500RL7 also boasts robust ESD (Electrostatic Discharge) protection, safeguarding the device against unexpected electrical spikes. Additionally, its low power dissipation makes it an energy-efficient choice for battery-powered devices.

With its precise signal handling capabilities, the ADG1211YCPZ-500RL7 from Analog Devices Inc. is an ideal solution for designers seeking a high-performance analog switch that combines efficiency with miniaturization. Whether for professional or industrial use, this product stands as a testament to Analog Devices Inc.'s commitment to innovation and quality in the field of analog technology.
