Product Overview: ADV7189BKSTZ

The ADV7189BKSTZ from Analog Devices Inc. is a high-performance, single-chip video decoder that converts analog composite or S-video signals into a digital multi-bit interface. This integrated circuit is designed to simplify the implementation of video systems in a wide range of applications, including surveillance, automotive, and consumer electronics.

Key Features

• Multi-format Support: The ADV7189BKSTZ is capable of decoding a variety of standard-definition video formats, including NTSC, PAL, and SECAM, making it a versatile choice for global applications.
• High-quality Video: With its advanced 10-bit analog-to-digital conversion and proprietary digital comb filter, the device ensures crisp, clear video output with minimal artifacts.
• Integrated Filters: The on-chip filters reduce noise and improve image quality, eliminating the need for external components and reducing system cost and complexity.
• Low Power Consumption: Designed with power efficiency in mind, the ADV7189BKSTZ helps to reduce power consumption in end products, contributing to longer battery life and energy savings.
• Flexible Interface: The digital output is compatible with a wide range of video processors and SoCs, providing designers with flexibility in system design.

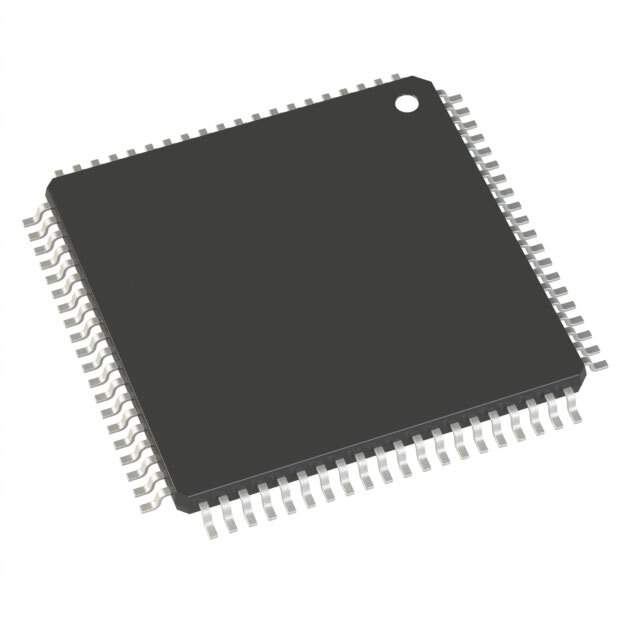

• Compact Package: Housed in a space-saving LQFP surface mount package, the ADV7189BKSTZ is ideal for applications where board space is at a premium.

Applications

• Video surveillance systems
• Automotive infotainment and rear-view cameras
• Portable and home entertainment devices
• Video conferencing equipment
• Industrial and medical imaging systems

Technical Specifications

The ADV7189BKSTZ operates over a wide temperature range and includes features such as an automatic gain control (AGC), programmable hue, brightness, saturation, contrast adjustments, and an I²C interface for control settings. This robust feature set, combined with the quality and reliability of Analog Devices products, makes the ADV7189BKSTZ an excellent choice for developers looking to integrate video capabilities into their designs.

For more detailed technical specifications, application notes, and support resources, please visit the Analog Devices Inc. website or contact their support team for assistance.
