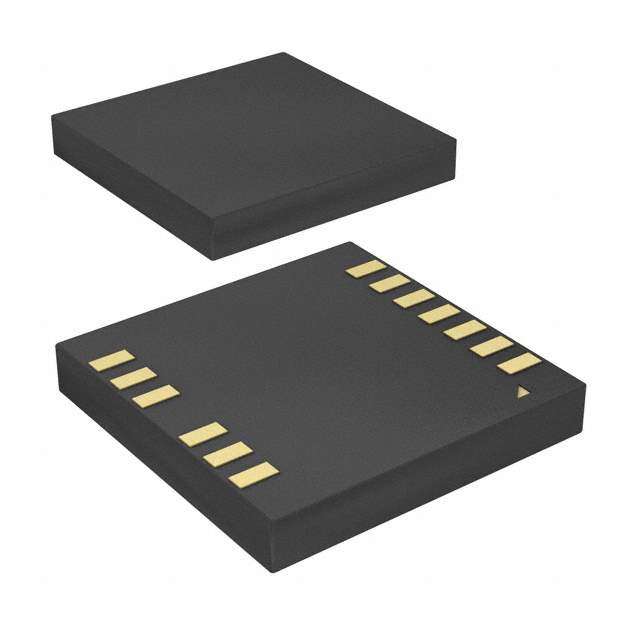

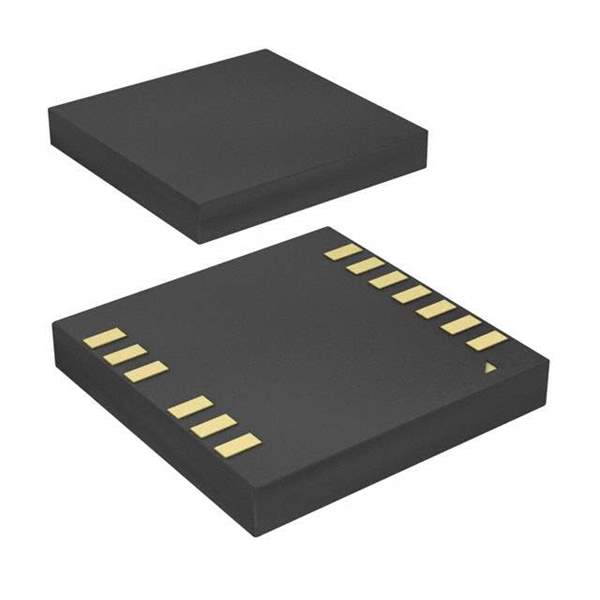

Product Overview: ADUM7223BCCZ-RL7 by Analog Devices Inc.

The ADUM7223BCCZ-RL7 is a high-performance, quad-channel digital isolator with an integrated, isolated DC-to-DC converter, designed and manufactured by Analog Devices Inc. This cutting-edge component is engineered to provide both signal isolation and power isolation in a single, compact package, making it an ideal solution for a variety of industrial and commercial applications where isolation is a critical requirement.

Key Features

• Integrated Isolation: The ADUM7223BCCZ-RL7 combines high-speed digital isolation with an isolated power converter, offering a two-in-one solution that simplifies design and conserves board space.
• High Data Rates: With support for data rates up to 25 Mbps, this isolator is well-suited for high-speed communication protocols, ensuring reliable data transmission even in electrically noisy environments.
• Robust Isolation: The device provides robust galvanic isolation rated at 3 kVrms for 1 minute, which helps protect sensitive electronic components from high voltage transients and ground potential differences.
• Low Emissions: The ADUM7223BCCZ-RL7 is designed with iCoupler® technology to minimize electromagnetic interference (EMI), facilitating compliance with regulatory standards and improving system performance.
• Package and Temperature Range: It comes in a 16-lead SOIC package with an industrial temperature range of -40°C to +105°C, ensuring reliable operation in harsh environments.
• Applications: This product is suitable for a broad range of applications, including isolated SPI interfaces, industrial PLCs, and power supply control and monitoring.

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the ADUM7223BCCZ-RL7 is no exception. Each device is rigorously tested to meet high standards, ensuring dependable performance in critical systems.

Ordering Information

The ADUM7223BCCZ-RL7 is available in reel packaging, denoted by the suffix 'RL7', which is suitable for automated assembly processes, making it a convenient choice for mass production requirements.

With its combination of high-speed data transfer, integrated power isolation, and compact form factor, the ADUM7223BCCZ-RL7 from Analog Devices Inc. represents a state-of-the-art solution for designers seeking to incorporate isolation in their systems with minimal complexity and maximum efficiency.
