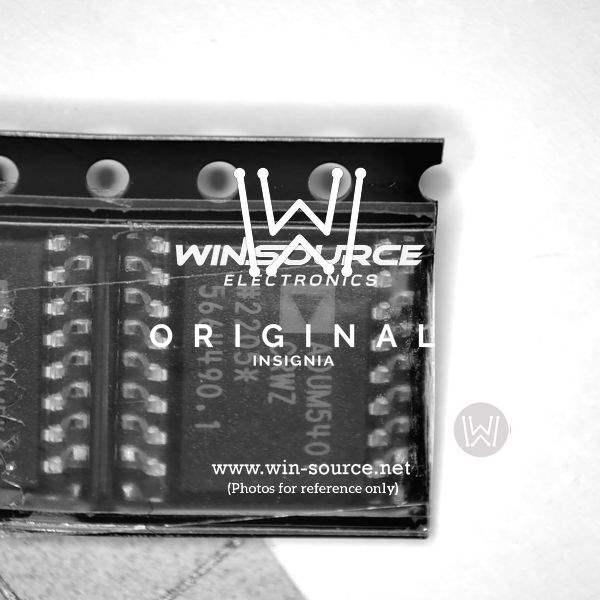

ADUM5401CRWZ-RL Digital Isolator by Analog Devices Inc.

The ADUM5401CRWZ-RL from Analog Devices Inc. is a robust digital isolator, designed to ensure signal integrity and safety by electrically isolating high-speed digital signals. This component is part of Analog Devices' award-winning iCoupler® family, which utilizes chip-scale transformer technology to achieve isolation. It is specifically crafted to meet the rigorous demands of industrial and commercial applications where isolation is a critical requirement.

The ADUM5401CRWZ-RL offers a quad-channel configuration, with two forward and two reverse channels, allowing for versatile bidirectional communication. It is capable of data rates up to 10 Mbps, making it suitable for a variety of digital communication protocols. The device operates with a wide supply voltage range from 3.0V to 5.5V, providing flexibility in design and compatibility with different logic levels.

One of the key features of this digital isolator is its integrated, isolated dc-to-dc converter. This provides regulated, isolated power derived from a single 5V supply, which simplifies the power supply design and reduces the need for multiple isolated power supplies. The dc-to-dc converter offers an output power of up to 500 mW, which is ample for powering the isolated side of the circuit in many applications.

For safety, the ADUM5401CRWZ-RL is designed with high isolation voltage ratings, up to 2.5 kVrms for one minute, and it complies with safety standards such as UL, CSA, and VDE, ensuring it can be used in safety-critical systems. Additionally, it features low power consumption and an operational temperature range of -40°C to +105°C, making it suitable for harsh environments.

The device comes in a 16-lead SOIC wide-body package, with increased creepage and clearance distances to support the high voltage isolation requirements. The "RL" suffix denotes that the product is offered in reel packaging, facilitating efficient assembly for high-volume production.

In summary, the ADUM5401CRWZ-RL is an ideal solution for designers looking to incorporate safe, reliable, and high-speed digital isolation into their systems, with the added convenience of integrated isolated power.
