Same model may have multiple batches, images only for reference.

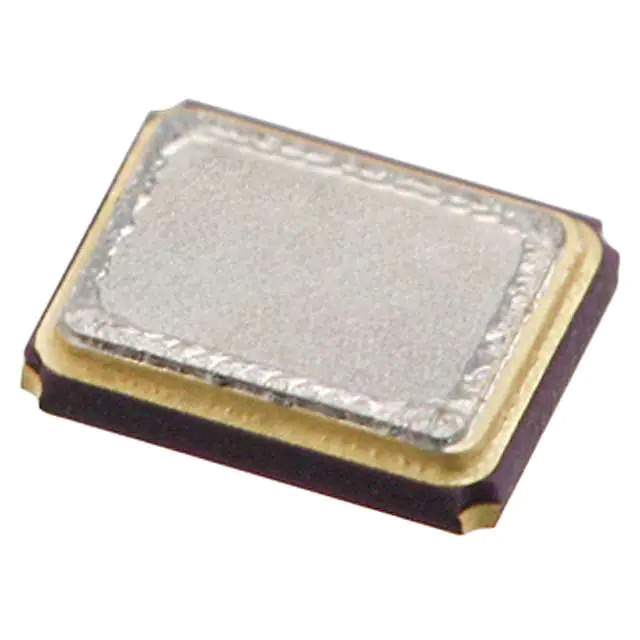

ECS-240-12-33Q-JES-TR Real Image
Same model may have multiple batches, images only for reference.

ECS-240-12-33Q-JES-TR

Part No ECS-240-12-33Q-JES-TR
Manufacturer ECS Inc.
Catalog Oscillators
Description CRYSTAL 24.0000MHZ 12PF SMD
Datasheet
ECS-240-12-33Q-JES-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr ECS Inc.
Series ECX-33Q
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 851885-ECS-240-12-33Q-JES-TR
Ultra Librarian 3D Model Ultra Librarian ECS-240-12-33Q-JES-TR CAD Model

Description

The 851885-ECS-240-12-33Q-JES-TR is a MHz crystal oscillator manufactured by ECS Inc.

  • Category: Crystals, Oscillators, Resonators - Crystals
  • Series: ECX-33Q
  • Packaging: Tape and Reel
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height Seated: 0.031" (0.80mm)
  • Standard Package: 3,000 pieces
  • Frequency: 24 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 12pF
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • AEC-Q200: Yes
  • Applications: Automotive electronics, telecommunications, and industrial control systems.
