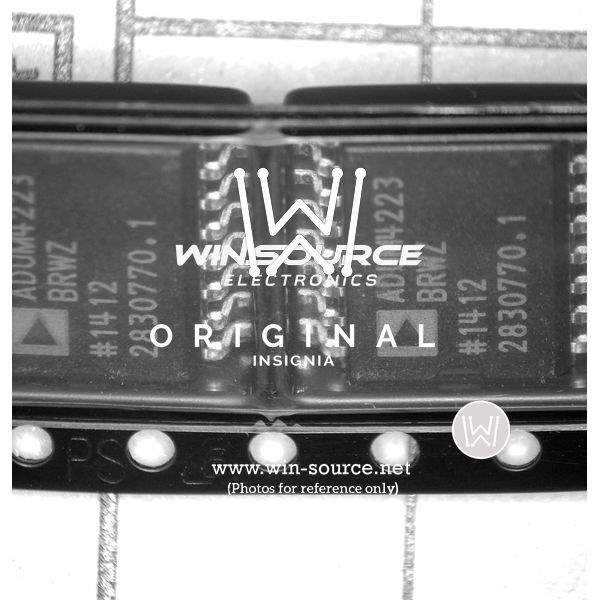

Analog Devices Inc. ADUM4223BRWZ Isolated Gate Driver

The ADUM4223BRWZ is a robust, high-performance isolated gate driver manufactured by Analog Devices Inc., designed for driving insulated-gate bipolar transistors (IGBTs) and power metal-oxide-semiconductor field-effect transistors (MOSFETs). This driver is particularly suited for applications that demand efficient power conversion and reliable operation under harsh industrial conditions.

Featuring Analog Devices Inc.'s iCoupler® technology, the ADUM4223BRWZ provides galvanic isolation between the input signal and the output driver. This isolation ensures that high voltage spikes do not damage sensitive control circuitry, making the ADUM4223BRWZ an excellent choice for systems that require electrical safety and noise immunity.

The device is capable of delivering an output current of up to 4A, which is suitable for driving a wide range of power switches. The ADUM4223BRWZ operates over a wide supply voltage range from 15V to 30V, allowing for flexible integration into various circuit designs. Additionally, it offers a high common-mode transient immunity of >50 kV/µs, which is critical for ensuring stable operation in electrically noisy environments.

One of the key features of the ADUM4223BRWZ is its dual independent channels, which can be used to drive two separate gates or configured for a high-side/low-side switch. The driver's outputs are matched with tight propagation delays, ensuring precise timing control in power switching applications. Furthermore, the device includes under-voltage lockout protection, which prevents operation when the supply voltage is insufficient, thereby protecting the power switches from damage.

The ADUM4223BRWZ is available in a compact 16-lead SOIC package, making it suitable for space-constrained applications. Its wide operating temperature range of -40°C to +125°C ensures reliable operation in extreme conditions. Whether it's for motor control, inverter control, or switching power supplies, the ADUM4223BRWZ from Analog Devices Inc. is engineered to meet the stringent requirements of high-performance power systems.

Overall, the ADUM4223BRWZ isolated gate driver is a testament to Analog Devices Inc.'s commitment to providing advanced solutions that enhance the efficiency and reliability of electronic systems.
