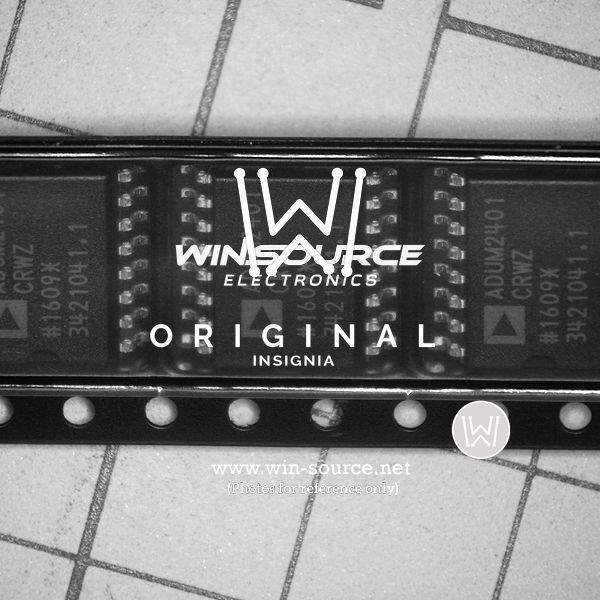

ADUM2401CRWZ-RL: A Robust Digital Isolator from Analog Devices Inc.

The ADUM2401CRWZ-RL, manufactured by Analog Devices Inc., is a high-performance, quad-channel digital isolator designed to offer exceptional signal integrity and isolation for a wide range of applications. Utilizing Analog Devices' proprietary iCoupler® technology, this component provides a robust isolation barrier that enables the transfer of digital signals between circuits with different power domains while maintaining a high level of electrical safety and noise immunity.

Key Features

• High Data Rates: Supports data rates up to 1 Mbps, making it suitable for high-speed digital interfacing.
• Quad-Channel Isolation: Features four independent isolation channels, each capable of transmitting data in either direction, providing flexibility in signal routing and system design.
• Robust Isolation: Offers an isolation voltage rating of 2500 Vrms for 1 minute, ensuring safety and reliability in high-voltage applications.
• Low Power Consumption: Designed for energy efficiency, the ADUM2401CRWZ-RL operates with low power consumption, reducing thermal load and saving system power.
• Wide Temperature Range: Operates reliably over an industrial temperature range of -40°C to +125°C, making it suitable for harsh environments.
• Compact Package: Available in a 16-lead SOIC wide-body package, providing a compact solution that saves board space.
• Regulatory Approvals: Compliant with key industry safety standards, including UL, CSA, and VDE certifications, for ease of design-in and system approval.

Applications

The ADUM2401CRWZ-RL is ideal for a variety of applications where signal integrity and isolation are critical. Common uses include:

• Industrial automation and process control systems
• Medical equipment with stringent safety requirements
• Isolated sensor interfaces and data acquisition systems
• Isolated SPI, I2C, or UART interfaces
• Power supply control and monitoring

With its combination of high-speed data transfer, robust electrical isolation, and compact packaging, the ADUM2401CRWZ-RL is an excellent choice for designers looking to enhance the safety and performance of their systems. Analog Devices Inc. continues to innovate in the field of signal processing and isolation, and the ADUM2401CRWZ-RL is a testament to their commitment to quality and reliability.
