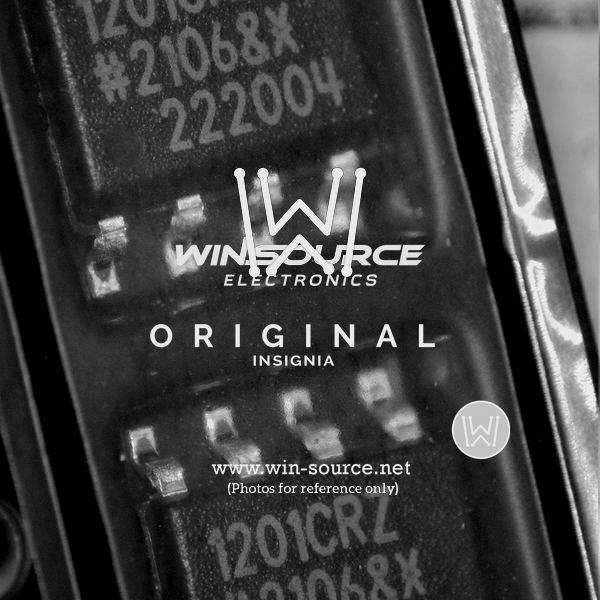

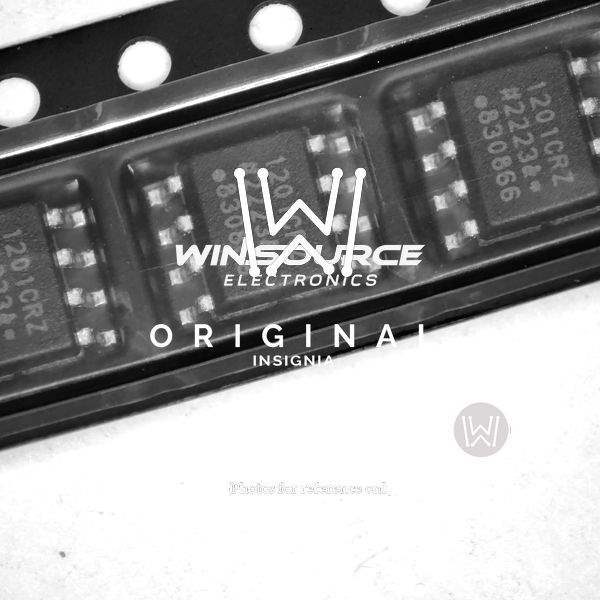

ADUM1201CRZ-RL7 - Digital Isolator from Analog Devices Inc.

The ADUM1201CRZ-RL7 is a robust digital isolator designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This component provides two independent isolation channels in a small 8-lead SOIC package, making it an excellent choice for space-constrained applications requiring high isolation strength.

Utilizing Analog Devices' iCoupler® technology, the ADUM1201CRZ-RL7 offers superior performance by combining high-speed CMOS and monolithic air core transformer technology. This approach eliminates the need for bulky optocouplers and offers several advantages including lower power consumption, improved data transfer rates, and enhanced reliability over a wide temperature range.

The device supports a wide supply voltage range of 2.7 V to 5.5 V, allowing it to be used in various systems without the need for additional voltage regulation. It is capable of providing bidirectional communication with data rates up to 10 Mbps, ensuring that it can handle a broad spectrum of digital signals.

Key features of the ADUM1201CRZ-RL7 include its high isolation voltage of 2500 Vrms for 1 minute, which provides significant protection for sensitive circuitry. The isolator also has a low propagation delay, typically 50 ns or less, which minimizes the signal timing differences across the isolation barrier. Additionally, the device is fully RoHS compliant and is specified for wide temperature ranges, making it suitable for industrial applications.

For enhanced safety, the ADUM1201CRZ-RL7 has been certified by regulatory agencies, including UL, CSA, and VDE, ensuring that it meets the stringent requirements for electrical isolation in equipment. This makes the ADUM1201CRZ-RL7 an ideal choice for use in medical, industrial, and other applications where electrical isolation is critical for protecting both the equipment and the user.

In summary, the ADUM1201CRZ-RL7 from Analog Devices Inc. is a high-performance, dual-channel digital isolator that offers a reliable and efficient solution for achieving electrical isolation in a compact and cost-effective package.
