ADUM1201ARZ-REEL7 - Digital Isolators by Analog Devices Inc.

The ADUM1201ARZ-REEL7 is a state-of-the-art digital isolator designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This component is a part of the ADuM1201 series, which utilizes iCoupler® technology to achieve high-speed, two-channel digital isolation. The ADUM1201ARZ-REEL7 offers a compelling solution for applications requiring the isolation of digital signals for safety, noise reduction, and ground loop elimination.

Featuring two independent isolation channels, this device supports data rates up to 10 Mbps, making it suitable for a wide range of digital communication applications. Each channel can be used in either direction, providing flexibility in bidirectional communication interfaces. The isolator operates with a supply voltage range of 2.7V to 5.5V, allowing it to easily integrate into low-voltage systems as well as standard TTL and CMOS levels.

The ADUM1201ARZ-REEL7 is characterized by its robust isolation capability, with an isolation rating of 2500 Vrms for 1 minute per UL 1577. This ensures reliable operation in electrically noisy environments or where large common-mode voltages are present. Its high-speed operation is complemented by low power consumption, making it an efficient choice for power-sensitive applications.

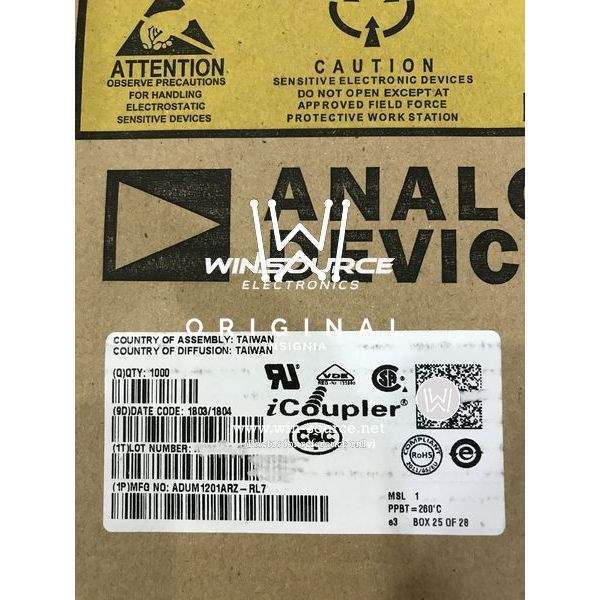

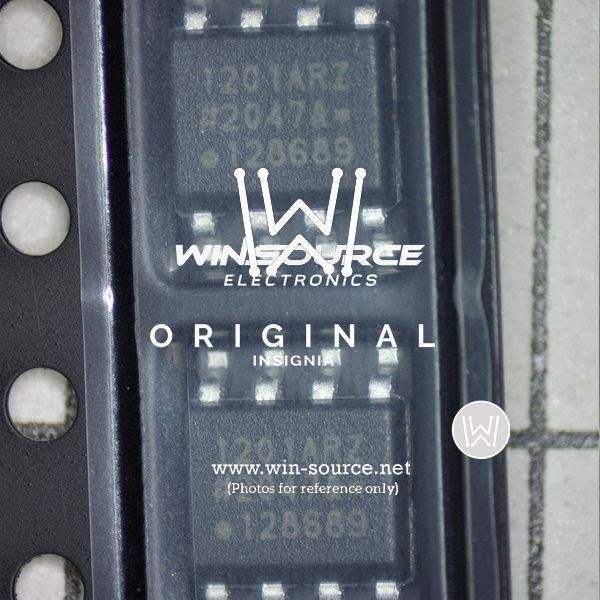

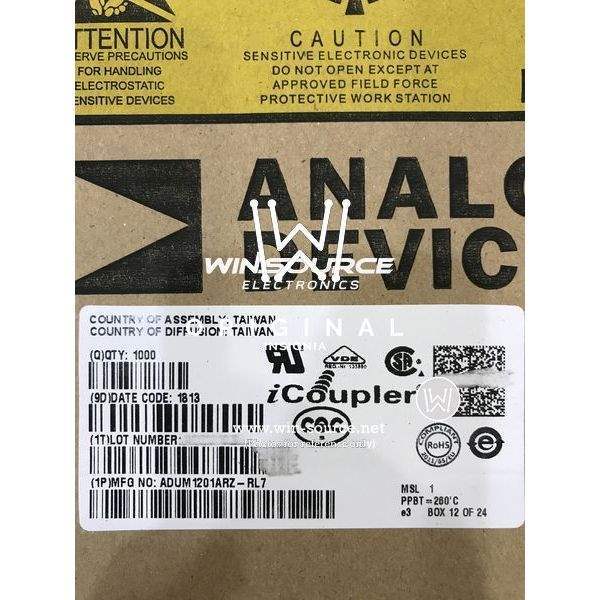

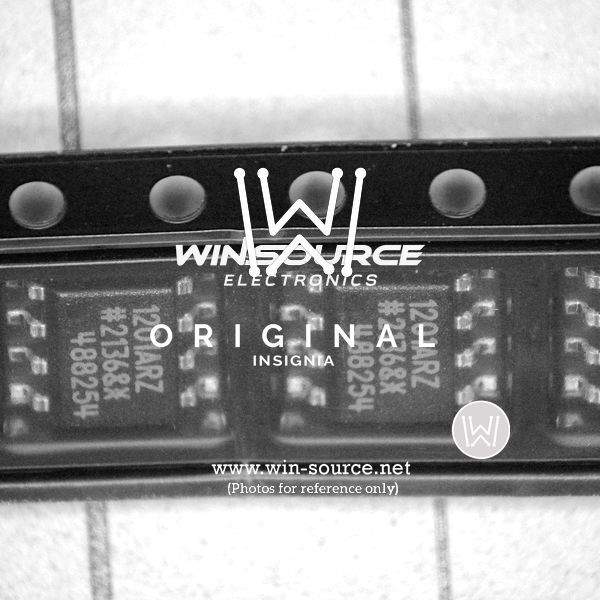

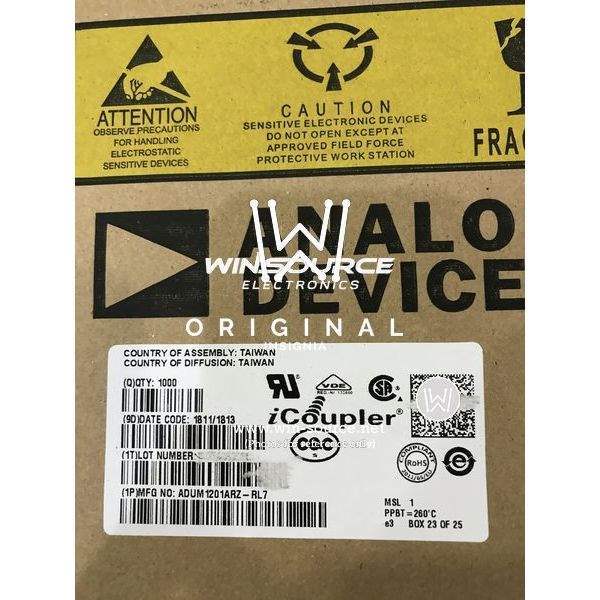

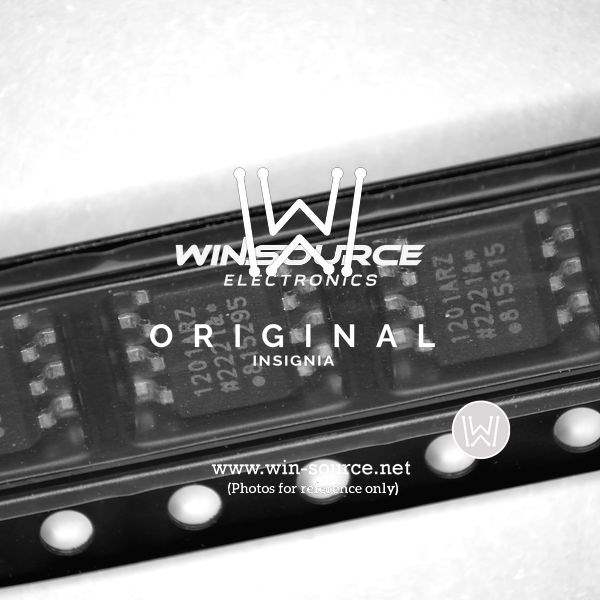

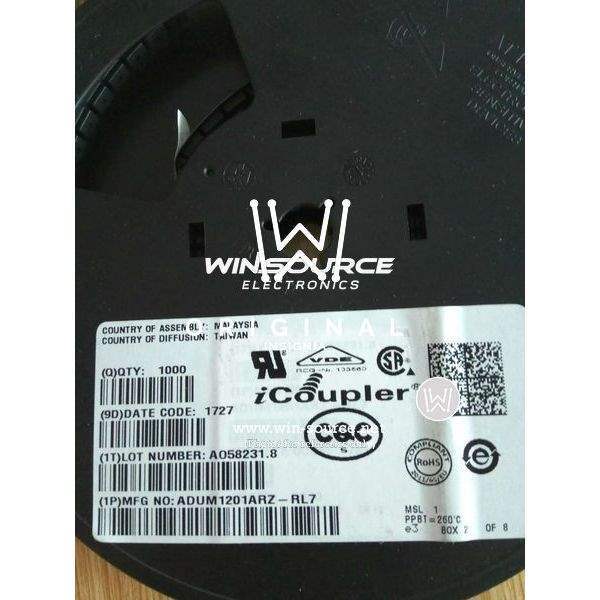

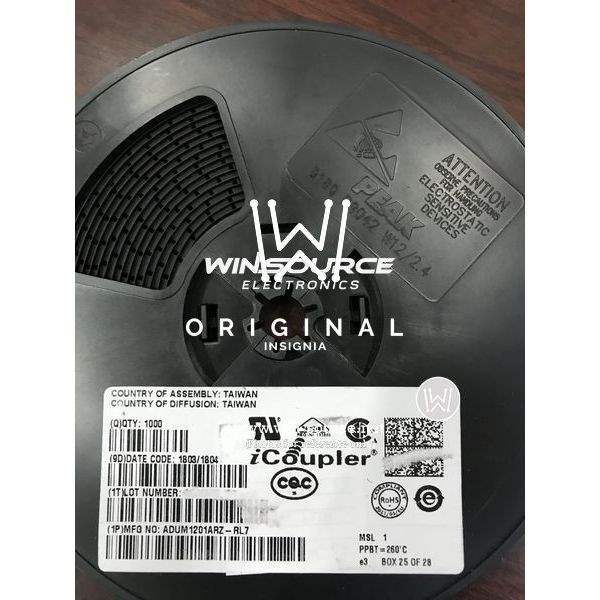

For ease of design and space-saving considerations, the ADUM1201ARZ-REEL7 comes in a compact 8-lead SOIC package, making it an ideal choice for use in limited space conditions. The REEL7 suffix denotes that this component is provided in a 7-inch reel, facilitating automated manufacturing processes and volume assembly.

Applications for the ADUM1201ARZ-REEL7 are diverse and include but are not limited to industrial fieldbus networks, multiplexed data transmission, medical equipment with stringent safety requirements, and peripheral interfaces. Its reliability and performance make it a go-to choice for engineers and designers looking to create systems with robust digital signal isolation.

Overall, the ADUM1201ARZ-REEL7 by Analog Devices Inc. represents a blend of advanced isolation technology, high-speed data transfer, and low power consumption, packaged in a convenient and reliable form factor.
