Analog Devices ADSP-CM408CSWZ-BF Microcontroller

The ADSP-CM408CSWZ-BF is a highly integrated mixed-signal microcontroller solution developed by Analog Devices Inc., a leader in high-performance semiconductors. This product is designed to deliver exceptional precision, reliability, and performance for a wide range of industrial, automotive, and consumer applications that require sophisticated control and signal processing capabilities.

At the heart of the ADSP-CM408CSWZ-BF is a 32-bit ARM Cortex-M4 processor core, which features a floating-point unit (FPU) for efficient handling of computationally intensive tasks. The core operates at a frequency of up to 240 MHz, providing the computational horsepower necessary to execute complex algorithms and manage multiple tasks simultaneously.

This microcontroller is equipped with 384KB of embedded SRAM, which allows for rapid data access and manipulation, ensuring smooth and responsive system performance. Additionally, the ADSP-CM408CSWZ-BF includes 2MB of flash memory for secure and reliable storage of firmware and application code.

The device boasts an array of integrated peripherals that enhance its functionality and reduce the need for additional components. These include multiple serial communication interfaces such as UART, SPI, and I2C, as well as advanced control peripherals like PWM outputs and timers. It also features a 16-channel, 12-bit analog-to-digital converter (ADC) with a conversion rate of up to 2 MSPS, allowing for precise data acquisition from sensors and other analog sources.

For applications demanding robust connectivity, the ADSP-CM408CSWZ-BF supports CAN and USB interfaces, facilitating communication with other devices and systems. Its rich set of I/O options and connectivity features make it an ideal choice for embedded systems that require external interaction and control.

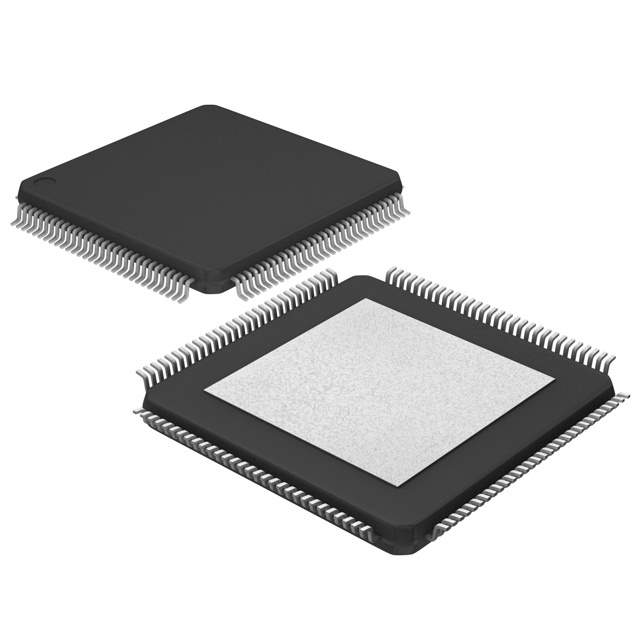

The microcontroller is housed in a small 120-lead LQFP package, making it suitable for space-constrained applications. Additionally, it is characterized for operation over an industrial temperature range, ensuring reliable performance even in harsh environments.

In summary, the ADSP-CM408CSWZ-BF from Analog Devices Inc. is a powerful, versatile, and reliable microcontroller that offers a comprehensive set of features for demanding applications. Its integration of advanced processing capabilities, memory, and peripherals into a single chip makes it a compelling choice for designers looking to optimize their systems for performance and cost.
