Analog Devices Inc. ADSP-CM403CSWZ-CF Overview

The ADSP-CM403CSWZ-CF is a high-performance, mixed-signal control processor from Analog Devices Inc., a leader in the semiconductor industry. This processor is part of the ADSP-CM40x series, which integrates the ARM Cortex-M4 processor core with floating-point unit operating at frequencies up to 240 MHz. The device is specifically designed to cater to the demanding needs of industrial, automotive, and general-purpose applications that require precise control and signal processing capabilities.

With its advanced architecture, the ADSP-CM403CSWZ-CF offers a rich set of peripherals and features that enhance system performance and reduce time-to-market for a wide range of products. The processor includes a 16-bit ADC with up to 14 channels, providing high-resolution analog-to-digital conversion. It also features a multi-channel synchronous serial port (SPORT) that supports audio and telephony standards, making it an ideal choice for embedded audio applications.

The device's connectivity options are bolstered by I2C, SPI, UART, and CAN interfaces, allowing for flexible communication with other components in a system. Moreover, the ADSP-CM403CSWZ-CF provides a PWM unit, which is essential for motor control and power conversion applications. The integrated memory interface supports a range of external memory types, including SDRAM, flash, and ROM, ensuring ample storage for complex programs and datasets.

For enhanced security, the processor features a hardware cryptography accelerator, which facilitates secure data transmission and storage. Safety-critical applications benefit from the processor's error correction code (ECC) support, which helps to detect and correct memory errors, thereby improving system reliability.

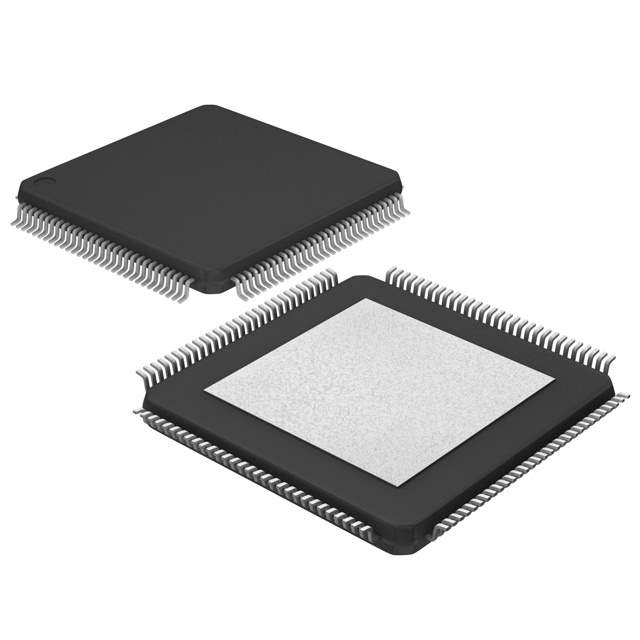

The ADSP-CM403CSWZ-CF is available in a 120-lead LQFP package, making it suitable for space-constrained applications. Its robust design and wide operating temperature range ensure reliable operation in harsh environments, which is a critical requirement for industrial and automotive applications.

Overall, the ADSP-CM403CSWZ-CF from Analog Devices Inc. represents a powerful and versatile solution for control and signal processing tasks, combining performance, connectivity, and reliability in a single chip.
