ADSP-BF700KCPZ-1

Part No ADSP-BF700KCPZ-1
Manufacturer Analog Devices Inc.
Catalog Embedded - DSP (Digital Signal Processors)
Description Instruction set compatible with previous Blackfin products | IC DSP LP 128KB L2SR 88LFCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Tray
Type Blackfin+
Interface CAN, DSPI, EBI/EMI, I2C, PPI, QSPI, SD/SDIO, SPI, SPORT, UART/USART, USB OTG
Clock Rate 100MHz
Non-Volatile Memory ROM (512 kB)
On-Chip RAM 128kB
Voltage - I/O 1.8V, 3.3V
Voltage - Core 1.10V
Temperature Range - Operating 0°C ~ 70°C
Mounting Style SMD

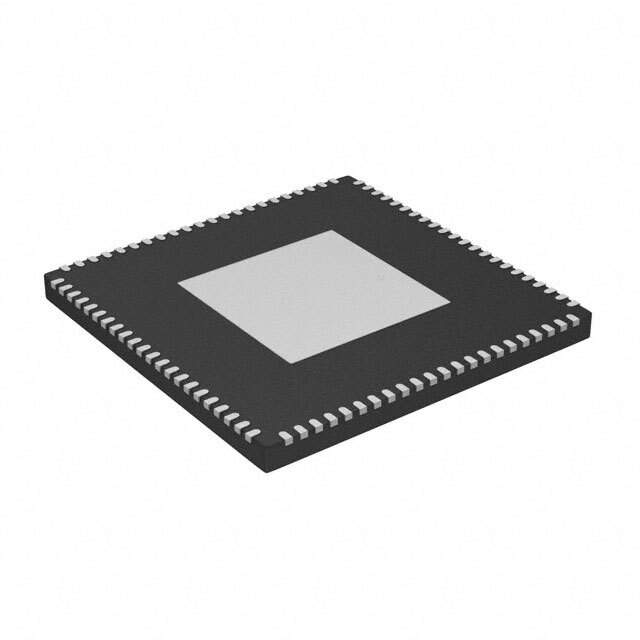

Manufacturer Package 88-VFQFN Exposed Pad, CSP
Supplier Device Package 88-LFCSP-VQ (12x12)
Family Part Number ADSP-BF700
Manufacturer Pack Quantity 168
MSL Level 3 (168 Hours)
Win Source Part Number 1142287-ADSP-BF700KCPZ-1
Manufacturer Homepage www.analog.com
Family Name ADSP-BF700
ECCN 5A992.c
Country of Origin Singapore
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ADSP-BF700KCPZ-1 CAD Model

Description

The ADSP-BF700KCPZ-1 is a high-performance signal processing microcontroller from Analog Devices Inc., a leader in the semiconductor industry. This product is part of the Blackfin family of processors, which are renowned for their powerful dual-core architecture and signal processing capabilities. The ADSP-BF700KCPZ-1 is designed to cater to a wide array of applications, including audio and video processing, industrial control, biometric analysis, and automotive systems.

Key Features:

  • Core Performance: The Blackfin BF70x series features a 400MHz core frequency, providing a robust platform for compute-intensive applications that require high performance in real-time environments.
  • Memory: This processor is equipped with an integrated L1 and L2 memory system, which includes 128kB of L1 memory and 512kB of L2 SRAM. This memory architecture allows for efficient data and instruction caching, leading to improved system performance.
  • Power Efficiency: ADSP-BF700KCPZ-1 is designed with power efficiency in mind, featuring Dynamic Power Management (DPM) capabilities that help reduce power consumption in various operating conditions.
  • Peripherals: It comes with a range of on-chip peripherals, including Gigabit Ethernet MAC, USB 2.0, SPI, UART, CAN, and SDIO interfaces, enabling easy connectivity and data transfer with other devices and systems.
  • Signal Processing: The processor supports advanced signal processing with SIMD (Single Instruction, Multiple Data) extensions and a rich instruction set, which is ideal for multimedia and DSP applications.
  • Package: The device is available in a 88-lead LFCSP (Lead Frame Chip Scale Package) that is both space-saving and allows for efficient heat dissipation.

Applications:

The versatility of the ADSP-BF700KCPZ-1 makes it suitable for a variety of applications. It is particularly well-suited for:

  • Advanced Audio and Video Processing
  • Industrial Automation and Control Systems
  • Automotive Electronics
  • Biometric Identification Systems
  • Healthcare and Medical Instrumentation

In conclusion, the ADSP-BF700KCPZ-1 from Analog Devices Inc. is a powerful and versatile microcontroller that offers a balance between performance and power efficiency, making it an ideal choice for developers and engineers looking to create sophisticated and reliable embedded systems.
