The ADSP-BF531SBBCZ400 is a high-performance digital signal processor (DSP) from Analog Devices Inc., renowned for its robust processing capabilities and power efficiency. This product is part of the Blackfin family of DSPs, which are designed to deliver a combination of processing power and energy savings, making them ideal for a wide range of applications, including industrial control, automotive systems, and consumer electronics.

Key Features

• Core: The device features a 400 MHz high-performance Blackfin processor core, which provides a high level of integration and efficiency.
• Memory: It comes with a large on-chip memory, including 16KB of L1 instruction memory, 32KB of L1 data memory, and 64KB of L2 memory, which can be configured as SRAM, cache, or a combination of both.
• Peripherals: A rich set of peripherals accompanies the processor, including UART, SPI, SPORT, PPI, and general-purpose I/Os, which facilitate easy interfacing with a variety of external devices.
• Power Management: The ADSP-BF531SBBCZ400 includes a dynamic power management feature that allows the optimization of power consumption versus performance, depending on the application requirements.

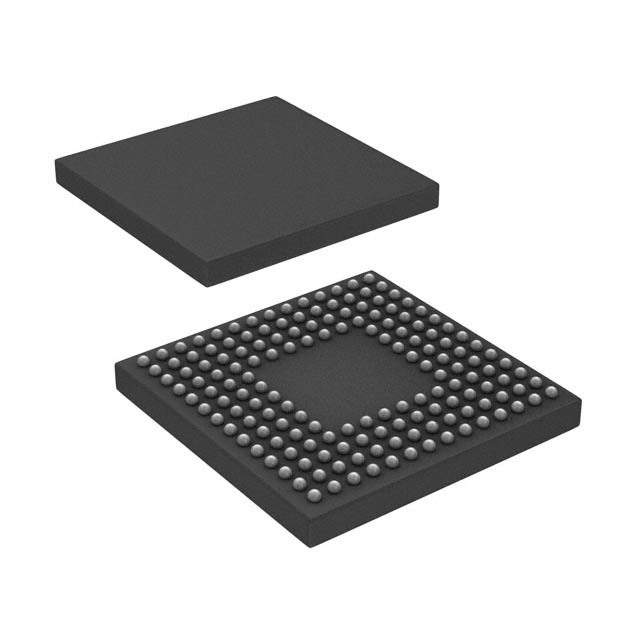

• Package: It is offered in a 160-ball CSPBGA (Chip Scale Package Ball Grid Array) package, which ensures a compact footprint for space-constrained applications.

Applications

This DSP is suitable for a multitude of applications that require high-speed signal processing and efficient operation. Its capabilities make it an excellent choice for:

• Audio and video processing
• Embedded control and processing
• Automotive systems such as driver assistance
• Industrial control systems
• Medical imaging devices
• Communication infrastructure

Design Support

Analog Devices Inc. provides comprehensive design support for the ADSP-BF531SBBCZ400, including technical documentation, software and hardware development tools, and reference designs. This support helps engineers to reduce development time and bring their products to market faster.
