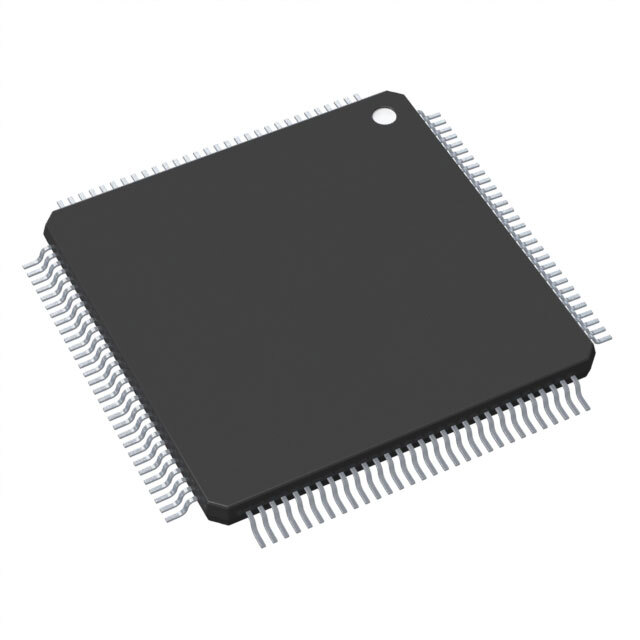

Same model may have multiple batches, images only for reference.
ADSP-21565BSWZ8 Analog Devices Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ADSP-21565BSWZ8

Part No ADSP-21565BSWZ8
Manufacturer Analog Devices Inc.
Catalog Embedded - DSP (Digital Signal Processors)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Analog Devices Inc.
Series SHARC®
Packaging Tray
Type Fixed/Floating Point
Interface DDR3, DDR3L, I²C, Link Port, QSPI, SPDIF, SPI, SPORT, UART/USART
Clock Rate 800MHz
Non-Volatile Memory OTP (896B)
On-Chip RAM 1.625MB
Voltage - I/O 3.30V
Voltage - Core 1.00V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 120-LQFP Exposed Pad
Supplier Device Package 120-LQFP-EP (14x14)
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0035
Win Source Part Number 1482188-ADSP-21565BSWZ8
Ultra Librarian 3D Model Ultra Librarian ADSP-21565BSWZ8 CAD Model
