ADRF6603-EVALZ Evaluation Board from Analog Devices Inc.

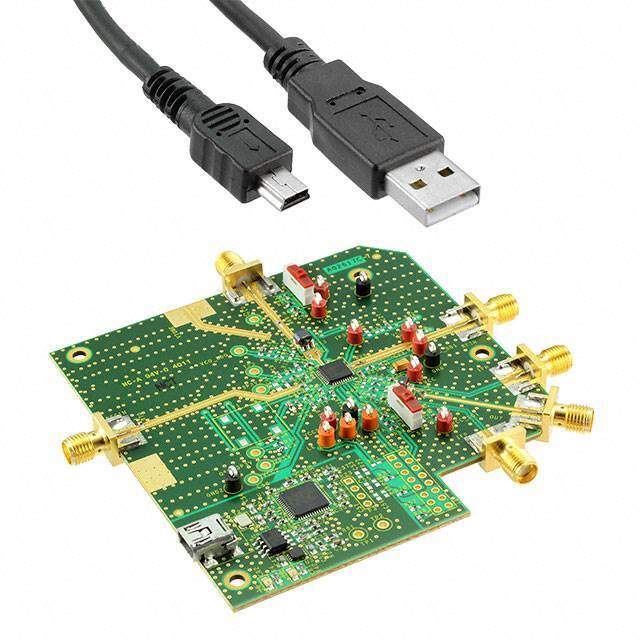

The ADRF6603-EVALZ is a comprehensive evaluation board designed to showcase the functionality and robust features of the ADRF6603 Mixer from Analog Devices Inc. This device is a high-performance, double-balanced, active mixer with an integrated fractional-N PLL (Phase-Locked Loop) and VCO (Voltage Controlled Oscillator), making it an ideal solution for complex RF (Radio Frequency) and IF (Intermediate Frequency) applications.

The evaluation board is engineered to facilitate easy testing and optimization of the ADRF6603's performance parameters in various signal chain environments. It is equipped with a variety of RF ports that are strategically placed to enable convenient connection to test equipment and other circuitry. The board is designed to operate over a broad frequency range, making it suitable for diverse applications such as wireless infrastructure, satellite communications, and broadband systems.

Key features of the ADRF6603-EVALZ include:

• Integrated LO (Local Oscillator) synthesizer with a wide frequency range.
• Programmable charge pump currents and phase detector polarity.
• High linearity and low noise performance.
• On-board PLL with both integer and fractional-N modes.
• Configurable power-down modes for power-sensitive applications.

Designed to maximize the ADRF6603's capabilities, the evaluation board simplifies the process of configuring the device's various functions through a user-friendly interface. The board is also accompanied by comprehensive documentation and software that provide detailed instructions for setup and operation, ensuring a smooth evaluation experience.

With its robust design and versatile features, the ADRF6603-EVALZ Evaluation Board from Analog Devices Inc. is an essential tool for engineers and designers looking to explore the full potential of the ADRF6603 Mixer in their RF and IF signal processing applications. By utilizing this evaluation platform, users can significantly reduce development time and accelerate the path to product deployment.
