The ADP5030ACBZ-1228R7 is a high-performance integrated power solution from Analog Devices Inc., designed to provide efficient power management for a variety of applications. This compact, integrated module combines multiple voltage regulators in a single package, offering a space-saving solution that simplifies the design process for engineers.

Key Features

• Dual Channel Regulator: The device includes two high-efficiency, step-down regulators with independent enable and power-good signals for each channel.
• Wide Input Voltage Range: The ADP5030ACBZ-1228R7 operates over a broad input voltage range from 2.3 V to 5.5 V, making it versatile for various supply voltages.
• Adjustable Output Voltage: Each channel can be configured to provide an adjustable output voltage, accommodating a variety of power requirements for different components.
• High Efficiency: The module features high-efficiency conversion rates, which helps to minimize power loss and heat dissipation, extending the battery life of portable devices.

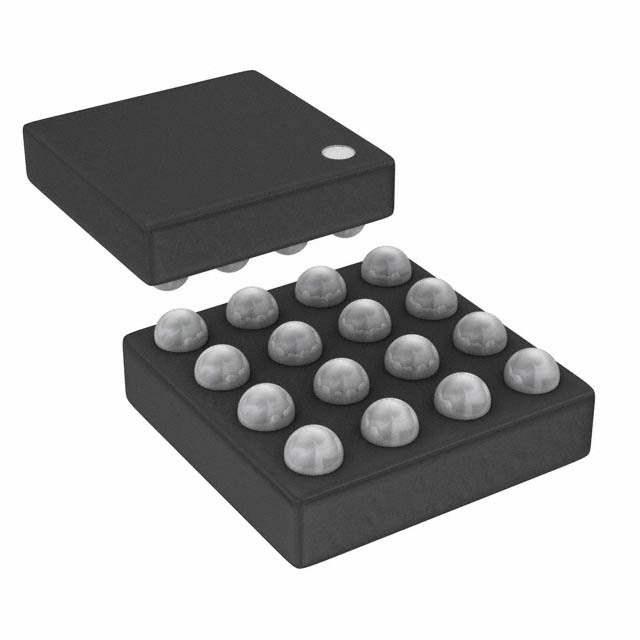

• Compact Package: Enclosed in a small 16-ball WLCSP (Wafer Level Chip Scale Package), the ADP5030ACBZ-1228R7 is optimized for space-constrained applications.
• Thermal Protection: The device includes thermal overload protection to ensure reliable operation under a wide range of temperature conditions.

Applications

The ADP5030ACBZ-1228R7 is suitable for a wide array of applications that require efficient power management. This includes but is not limited to:

• Portable and battery-powered devices
• Medical and healthcare equipment
• Industrial and instrumentation systems
• Communication devices
• Consumer electronics

Conclusion

The ADP5030ACBZ-1228R7 from Analog Devices Inc. is an ideal choice for designers looking for a reliable, high-efficiency power management solution. Its dual-channel capability, wide input voltage range, and compact size make it an excellent choice for a variety of applications, ensuring optimal performance and extended device operation.
