ADM2486BRWZ: Robust, High-Speed, Isolated RS-485/RS-422 Transceiver

The ADM2486BRWZ is a superior integrated circuit designed by Analog Devices Inc., tailored for high-speed bidirectional data communication on balanced transmission lines. It is part of the industry-leading portfolio of products that cater to RS-485 and RS-422 standards, ensuring reliable and robust communication in electrically harsh environments or over long distances.

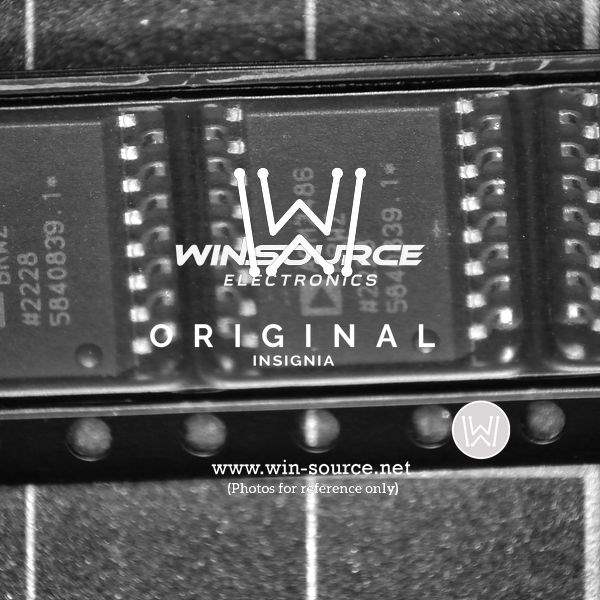

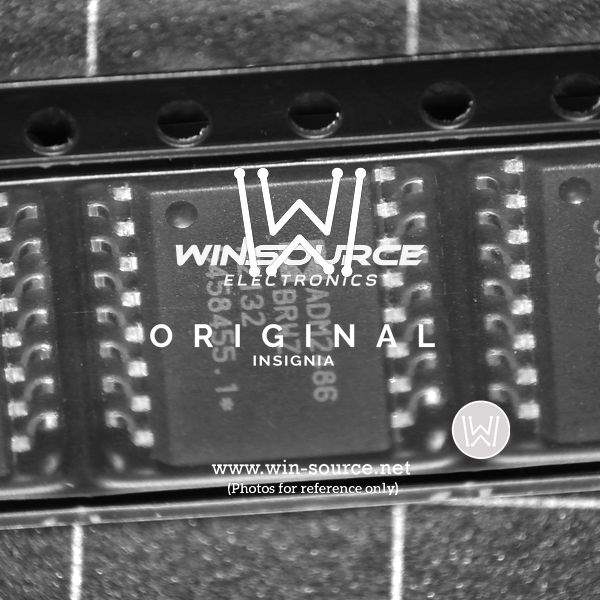

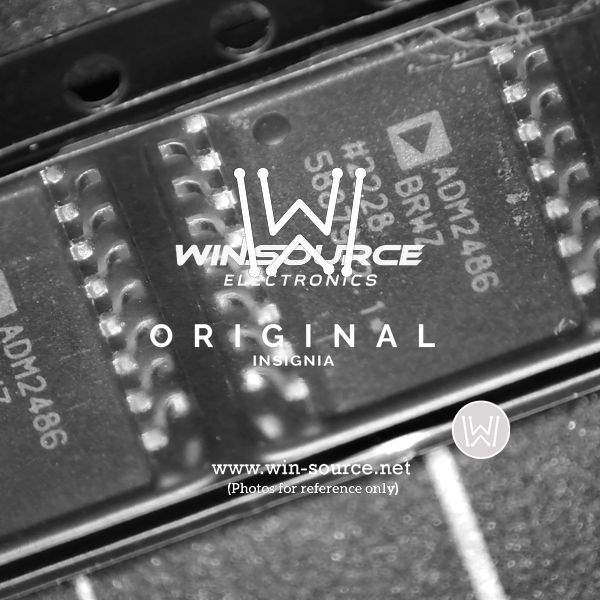

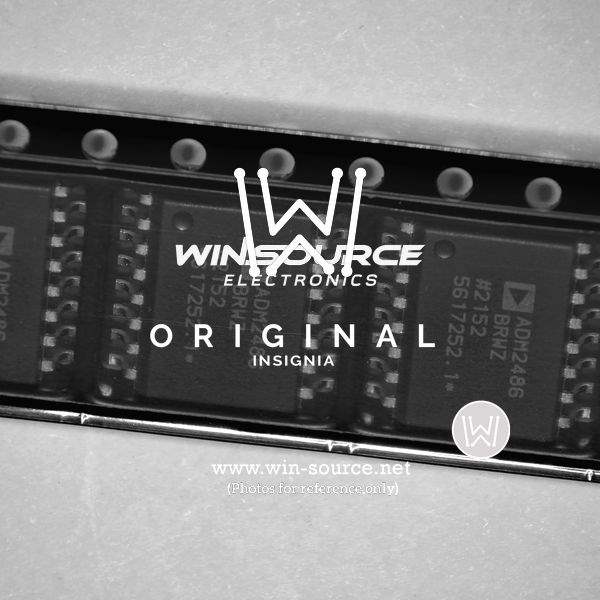

This transceiver is housed in a 16-lead SOIC wide-body package, providing ample isolation clearance and creepage required for high-voltage applications. The ADM2486BRWZ incorporates Analog Devices' iCoupler® technology, which uses magnetic coupling to achieve signal isolation. This feature allows the device to provide a robust isolation rating of 2.5 kV RMS, making it an excellent choice for systems where electrical isolation is a critical requirement.

With an extended temperature range of -40°C to +85°C, the ADM2486BRWZ is suitable for various industrial applications, including industrial field buses, factory automation, energy metering, and HVAC systems. Its high data rate capability of up to 500 kbps supports the demands of high-speed data transmission while maintaining signal integrity.

The device is designed with a full-duplex configuration, enabling simultaneous transmission and reception of data. It features thermal shutdown protection and a fail-safe receiver that ensures a logic high output when inputs are open, shorted, or idle, thus enhancing the reliability of the system it is integrated into.

Key features of the ADM2486BRWZ include:

• Integrated isolated RS-485/RS-422 transceiver
• 2.5 kV RMS signal and power isolated
• Operates from a single 5 V power supply
• High data rates up to 500 kbps
• Thermal shutdown protection
• Fail-safe receiver for open, short, and idle bus conditions
• 16-lead SOIC wide-body package
• Extended temperature range: -40°C to +85°C

Overall, the ADM2486BRWZ from Analog Devices Inc. is a powerful solution for any application requiring reliable data transmission with electrical isolation. Its robust design and advanced features ensure that it can meet the stringent requirements of industrial communication systems.
