ADM232AARNZ-REEL7 - High-Speed, 2-Channel RS-232/V.28 Interface Devices

The ADM232AARNZ-REEL7 is a superior integrated circuit from Analog Devices Inc., renowned for its high-speed operation and reliability in RS-232 and V.28 communication interfaces. This product is specifically designed to meet the demands of serial data communication, and it is a perfect fit for applications that require efficient data transfer through RS-232 protocol.

Constructed with a robust charge pump circuitry, the ADM232AARNZ-REEL7 can efficiently generate the necessary ±10V RS-232 voltage levels, despite being powered by a single 5V supply. This feature significantly simplifies power supply requirements and makes it an ideal choice for portable and space-constrained applications.

Featuring two drivers and two receivers, this interface IC is capable of supporting the full-duplex communication necessary for a wide range of applications, including but not limited to, modems, printers, and various data communication equipments. The device is designed to operate at data rates up to 200 kbps, making it well-suited for high-speed data transmission while maintaining signal integrity.

The ADM232AARNZ-REEL7 also boasts a low-power shutdown mode, which reduces power consumption when the device is not in active use, thus extending battery life in portable applications. This feature is particularly beneficial for battery-powered devices, as it allows for efficient power management.

With its enhanced electrostatic discharge (ESD) protection, the ADM232AARNZ-REEL7 ensures the reliability and longevity of the product, safeguarding it from the potential damages caused by static electricity. This protection is critical in today’s electronic environment where the integrity of data communication is paramount.

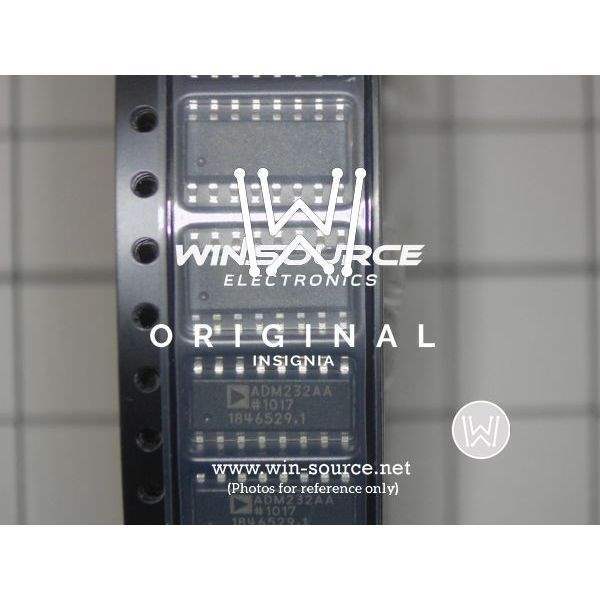

The product is available in a narrow, 16-lead SOIC package, making it compact and easy to integrate into various designs. The "REEL7" designation indicates that this component is provided in a tape and reel packaging, which is suitable for automated assembly processes, ensuring efficiency and consistency in mass production environments.

In conclusion, the ADM232AARNZ-REEL7 from Analog Devices Inc. is an exceptional choice for designers looking for a high-speed, reliable, and power-efficient RS-232 interface solution. Its combination of features ensures that it can meet the needs of advanced communication systems while simplifying design and reducing overall system costs.
