ADM1272-1ACPZ - Hot Swap Controller and Digital Power and Energy Monitor

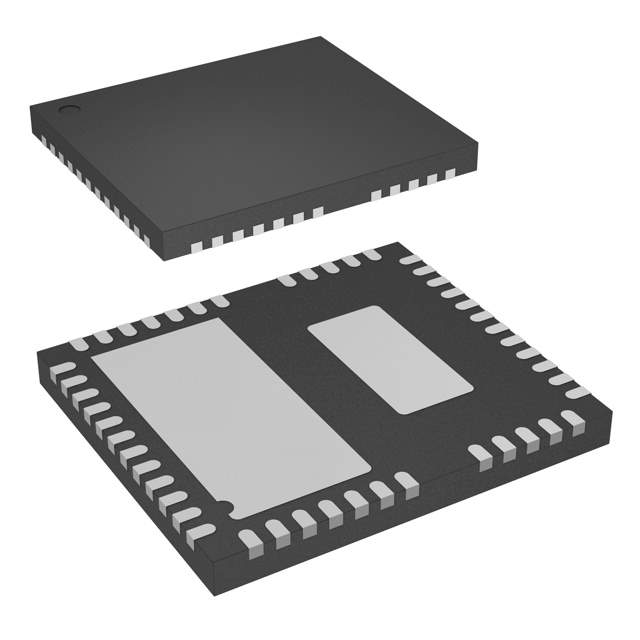

The ADM1272-1ACPZ from Analog Devices Inc. is a sophisticated hot swap controller and power monitoring solution designed for high-reliability server, telecom, and networking applications. This integrated circuit helps to safely insert and remove boards from a live backplane without causing any disruption to the existing system. It is housed in a compact 48-lead LFCSP package, offering a space-saving solution for densely packed circuit boards.

At the heart of the ADM1272-1ACPZ is its advanced hot swap control feature, which provides precise control over inrush currents, thereby protecting both the connector and the system power supply from the potentially damaging effects of uncontrolled current transients. The device's adjustable overcurrent and circuit breaker functionality further enhance system protection by preventing excessive power draw or short-circuit conditions.

Moreover, the ADM1272-1ACPZ is equipped with a digital power and energy monitoring system that allows for real-time tracking of the power usage and energy consumption. This feature is critical for systems where power efficiency and management are paramount, as it enables system administrators to optimize power resources and ensure reliable operation under varying load conditions. The device's I2C/SMBus interface facilitates communication with a host controller for reporting power and energy data, as well as for configuration and control purposes.

Key features of the ADM1272-1ACPZ include:

• Integrated hot swap controller to manage inrush current during board insertion and removal
• Digital power and energy monitoring for real-time power management
• Adjustable overcurrent and circuit breaker thresholds for enhanced system protection
• Black Box recorder functionality for fault recording
• 48-lead LFCSP package suitable for space-constrained applications
• I2C/SMBus serial interface for easy integration with system management controllers

With its robust feature set, the ADM1272-1ACPZ is an ideal choice for managing and monitoring power in critical systems where uptime and efficiency are crucial. Analog Devices Inc. has engineered this device to meet the stringent demands of modern electronic systems, ensuring both safety and performance.
