Analog Devices Inc. ADL5530ACPZ-R7 RF Amplifier

The ADL5530ACPZ-R7 is a high-performance RF amplifier designed and manufactured by Analog Devices Inc., a leading company in the semiconductor industry. This RF amplifier is part of the extensive range of RF components that Analog Devices offers, catering to a broad spectrum of applications including wireless communications, satellite systems, and test instrumentation.

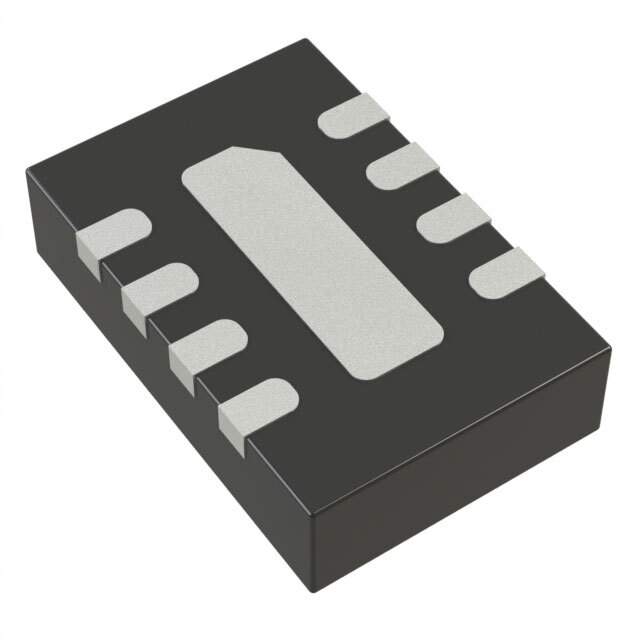

With a focus on delivering exceptional linearity and noise performance, the ADL5530ACPZ-R7 operates over a frequency range of 20 MHz to 1 GHz, making it highly versatile for a range of RF applications. The device is housed in a compact, 3 mm x 3 mm LFCSP (Lead Frame Chip Scale Package) that is suitable for space-constrained applications, while ensuring robustness and reliability in various operating conditions.

One of the key features of the ADL5530ACPZ-R7 is its ability to provide a high gain of 15 dB while maintaining a low noise figure, which is critical for maintaining signal integrity in RF signal chains. Additionally, this amplifier offers a high output IP3 (third-order intercept point) of 47 dBm, which translates to excellent linearity and allows the device to handle high-power signals without significant distortion.

The ADL5530ACPZ-R7 is also designed with ease of integration in mind. It requires minimal external components, which simplifies the design process for engineers and reduces time to market for end products. Moreover, it is compatible with standard SMT (Surface Mount Technology) processes, facilitating seamless incorporation into automated PCB assembly lines.

Overall, the ADL5530ACPZ-R7 from Analog Devices Inc. is an ideal choice for designers looking for a high-quality RF amplifier that combines performance, integration ease, and versatility. Whether it's for boosting signal levels in a receiver chain or driving a transmitter, this amplifier is engineered to meet the stringent demands of modern RF systems.

For detailed specifications, application notes, and support resources, customers can visit the Analog Devices Inc. website or contact their local sales representative.
