ADL5375-05-EVALZ - Analog Devices Inc.

The ADL5375-05-EVALZ is a high-performance evaluation board from Analog Devices Inc., designed to provide an efficient and user-friendly platform for testing and assessing the capabilities of the ADL5375-05 Quadrature Modulator. This device is particularly suited for modern wireless communication systems that require high linearity, broad bandwidth, and a robust feature set to achieve optimal signal performance.

Key Features

• Frequency Range: The ADL5375-05 is designed to operate within the 400 MHz to 6 GHz frequency range, making it versatile for a wide array of RF applications including cellular, broadband wireless access, and satellite communication systems.
• High Linearity: With excellent OIP3 (Output Third-Order Intercept Point) performance, the device ensures high-quality transmission by minimizing signal distortion.
• High Output Power: The modulator is capable of delivering a high output power level, which is critical for achieving sufficient signal strength in transmission systems.
• Single-Ended RF Output: The ADL5375-05 provides a single-ended RF output, simplifying the interface with other RF components and reducing the need for external baluns.
• Integrated LO Buffer: An integrated local oscillator (LO) buffer amplifier is included, which reduces the need for external circuitry and simplifies the overall design.

Applications

• Wireless Infrastructure (GSM, WCDMA, LTE)
• Broadband Wireless Access (WiMAX, WiFi)
• Point-to-Point/Point-to-Multipoint Microwave Links
• Satellite Communications

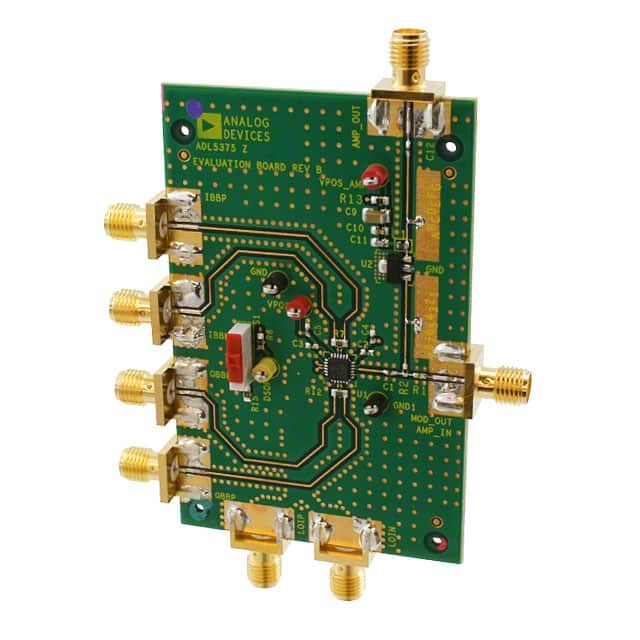

The ADL5375-05-EVALZ evaluation board is engineered to facilitate easy access to all the critical pins and functions of the modulator, ensuring a straightforward evaluation process. It comes equipped with SMA connectors for RF and LO inputs as well as RF output, allowing for quick connection to test equipment. Additionally, the board includes decoupling and matching components that can be adjusted to meet specific application requirements.

Analog Devices Inc. provides comprehensive technical documentation for the ADL5375-05-EVALZ, including detailed schematics, layout files, and application notes to assist developers in integrating the modulator into their designs with minimal effort. This evaluation board serves as an indispensable tool for designers looking to leverage the performance of the ADL5375-05 Quadrature Modulator in their next-generation wireless communication solutions.
