Product Overview: ADG936BRUZ-REEL7 by Analog Devices Inc.

The ADG936BRUZ-REEL7 is a high-performance RF switch fabricated by Analog Devices Inc., a leader in the semiconductor industry. This switch is designed for use in RF and IF signal routing applications, offering a broad frequency range and excellent signal fidelity. It is an ideal component for designers looking to create systems that require minimal signal distortion and high isolation.

Key Features

• Dual SPDT Configuration: The device features a dual single-pole, double-throw (SPDT) switch configuration, which allows for flexible signal routing options in a variety of RF applications.
• Broadband Frequency Range: With a wide operating frequency range from DC to 4 GHz, the ADG936BRUZ-REEL7 is suitable for a multitude of RF applications, including cellular, satellite communications, and broadband wireless systems.
• Low Insertion Loss: The switch maintains low insertion loss, ensuring minimal signal attenuation when routing through the switch, which is critical for maintaining signal integrity in communication systems.
• High Isolation: The ADG936BRUZ-REEL7 provides excellent isolation between RF ports, significantly reducing signal crosstalk and improving system performance.
• Single Supply Voltage: It operates on a single supply voltage ranging from +1.8 V to +5.5 V, making it compatible with a wide range of supply levels and simplifying power management in circuit design.
• Lead-Free, RoHS Compliant: This product is available in a lead-free, RoHS-compliant package, adhering to environmental regulations and promoting sustainability in electronic components.

Applications

• Wireless Communications
• Base Stations
• RF/IF Signal Routing
• Test and Measurement Equipment
• Automotive Systems

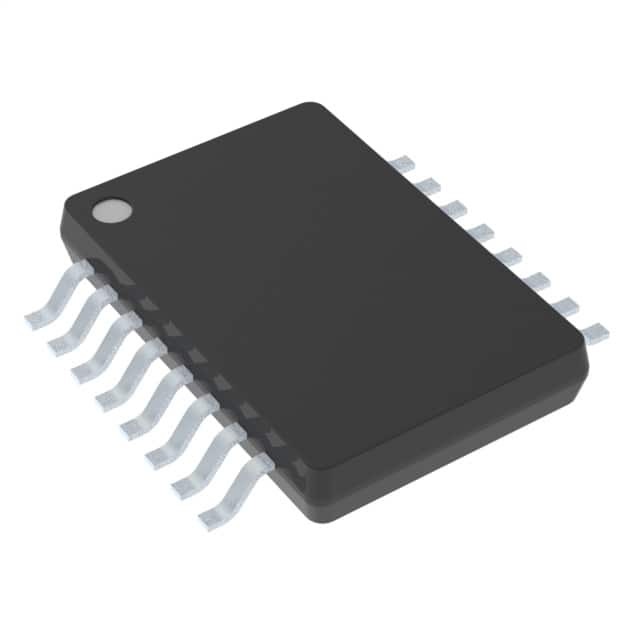

The ADG936BRUZ-REEL7 is offered in a compact TSSOP package and is part of Analog Devices Inc.'s extensive line of RF switches that are recognized for their reliability and performance. With its robust design and versatile functionality, the ADG936BRUZ-REEL7 is a strategic choice for engineers and designers looking to enhance their RF signal routing capabilities in both commercial and industrial applications.
