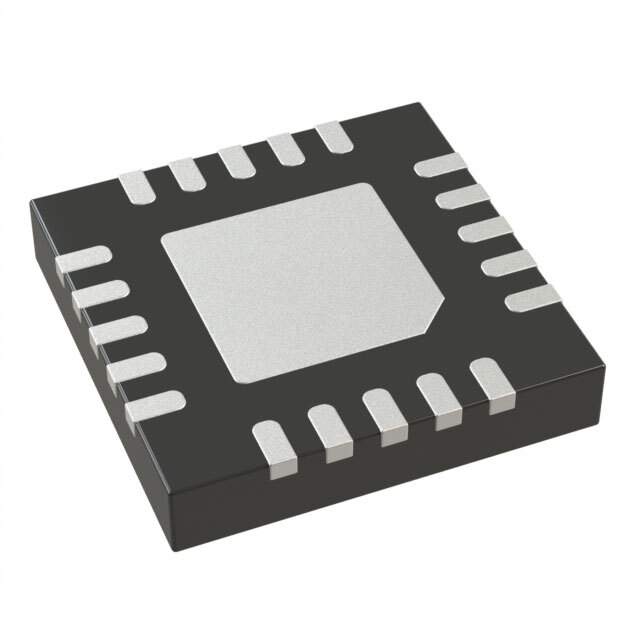

Analog Devices Inc. ADG5248FBCPZ-RL7 Product Overview

The ADG5248FBCPZ-RL7 is a high-performance, 4-channel analog multiplexer from Analog Devices Inc., a renowned leader in the semiconductor industry. This device is designed for precision, high-speed signal switching and routing applications that require low on-resistance, low crosstalk, and high off-isolation. It is a suitable choice for data acquisition systems, automatic test equipment, and other applications where a reliable and efficient signal management solution is critical.

The ADG5248FBCPZ-RL7 is a part of the robust iCMOS® modular manufacturing process which combines high-voltage silicon with submicron CMOS and complementary bipolar technologies. This process enables the device to offer superior performance characteristics that are ideal for a wide range of analog and digital applications.

Key Features

• Fully Specified at ±15 V, +12 V, and +5 V Supplies: This multiplexer operates reliably across various supply voltages, making it versatile for different system designs.
• 1.8 Ω On-Resistance: The low on-resistance ensures minimal signal distortion and voltage drop across the switch, which is crucial for maintaining signal integrity.
• 0.6 Ω On-Resistance Flatness: The flat on-resistance over the full signal range provides consistent performance and reduces signal distortion.
• 3 pC Charge Injection: Low charge injection helps in reducing switching transients and thus minimizes the impact on the signal quality.
• Overvoltage Protection: Inputs and outputs can tolerate overvoltages up to ±25 V, which provides a level of protection against unexpected voltage spikes.
• Low Power Consumption: The device's design focuses on energy efficiency, which is beneficial for power-sensitive applications.
• 44-Lead LFCSP Package: The compact package enables a smaller footprint on the PCB, saving space in densely packed systems.

Applications

The ADG5248FBCPZ-RL7 is well-suited for a variety of applications, including:

• Relay Replacement
• Data Acquisition Systems
• Audio and Video Routing
• Automatic Test Equipment
• Industrial Control Systems

With its high performance and reliability, the ADG5248FBCPZ-RL7 from Analog Devices Inc. is an excellent choice for designers looking to enhance the efficiency and accuracy of their signal routing capabilities in their electronic systems.
