Product Overview: ADG5234BRUZ-RL7

The ADG5234BRUZ-RL7 is a high-performance, quad SPDT (single pole double throw) switch manufactured by Analog Devices Inc., a renowned leader in precision high-performance integrated circuits. This component is designed to operate with dual supply voltages ranging from ±4.5 V to ±22 V, or a single supply from 9 V to 44 V, providing flexibility for a variety of power environments and applications.

Featuring an innovative design, the ADG5234BRUZ-RL7 offers low on resistance (Ron) typically around 4.5 Ω, which ensures minimal signal distortion and power loss across the switch. This low Ron is matched with a flatness of merely 0.5 Ω over the specified signal range, which is critical for maintaining signal integrity, especially in analog applications. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies.

With a robust latch-up proof performance, the ADG5234BRUZ-RL7 is built using Analog Devices’ proprietary trench isolation process, ensuring that the device can withstand latch-up after exposure to high-energy pulses. The switch also features fast switching times (t_ON and t_OFF) in the range of tens of nanoseconds, which is ideal for applications that require rapid signal routing.

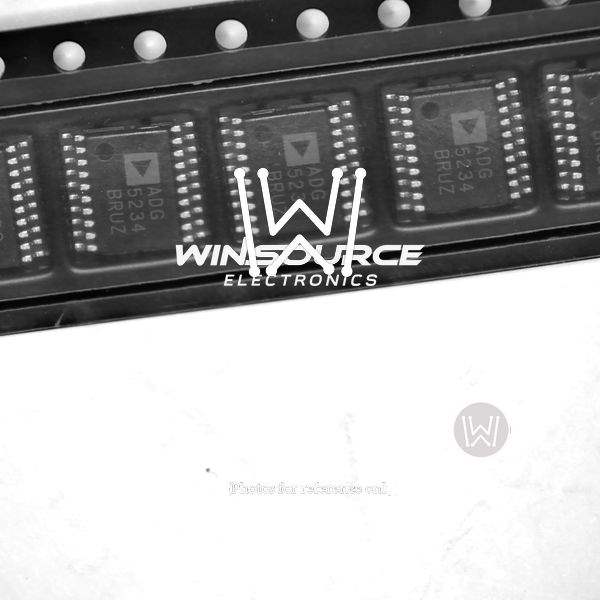

The device is packaged in a TSSOP-16 (thin shrink small outline package), denoted by the "RUZ" suffix in the part number, which is suitable for surface-mount technology (SMT) and occupies minimal board space. The "RL7" designation indicates the product is offered in reel packaging, facilitating automated assembly processes and high-volume production.

Typical applications for the ADG5234BRUZ-RL7 include data acquisition systems, communication systems, relay replacements, and audio and video signal routing. Its reliability and efficiency make it an excellent choice for designers seeking a switch with high ESD (electrostatic discharge) protection, low crosstalk, and high off isolation to minimize signal interference.

Key Features:

• Dual-supply operation: ±4.5 V to ±22 V
• Single-supply operation: 9 V to 44 V
• Low on resistance: 4.5 Ω typical
• On resistance flatness: 0.5 Ω typical
• High-speed switching: t_ON/t_OFF in tens of ns
• Latch-up proof technology
• TSSOP-16 packaging for SMT
• Reel packaging for automated assembly (RL7)

This product exemplifies Analog Devices' commitment to providing high-quality, precision components for sophisticated electronic systems across various industries.
