Product Overview: ADG439FBNZ by Analog Devices Inc.

The ADG439FBNZ is a high-performance analog switch developed by Analog Devices Inc., a leader in the semiconductor industry. This precision monolithic device is designed to provide superior switching capabilities for a wide range of applications, including data acquisition systems, communication systems, and medical equipment.

Key Features

• Low On-Resistance: The ADG439FBNZ boasts a low on-resistance, typically around 45 ohms, which ensures minimal signal distortion and power loss during operation.
• Dual SPDT Configuration: The switch features a dual single-pole, double-throw (SPDT) configuration, which provides flexibility in routing signals in complex circuit designs.
• Wide Supply Voltage Range: It operates across a broad supply voltage range of ±5 V to ±15 V, accommodating various power requirements and making it suitable for both single and dual supply operations.
• Fast Switching Times: With fast switching times (t_ON and t_OFF), the ADG439FBNZ ensures rapid signal routing, which is critical for high-speed data processing and real-time applications.
• Low Power Dissipation: The device is optimized for low power consumption, which is essential for battery-powered and energy-efficient systems.
• ESD Protection: Electrostatic discharge protection is integrated into the design, enhancing the robustness and longevity of the product.
• Break-Before-Make Switching: This feature prevents momentary shorting of signals during switching, which is important for maintaining signal integrity.

Applications

• Data Acquisition Systems
• Test Equipment
• Communication Systems
• Audio and Video Switching
• Medical Equipment
• Relay Replacement

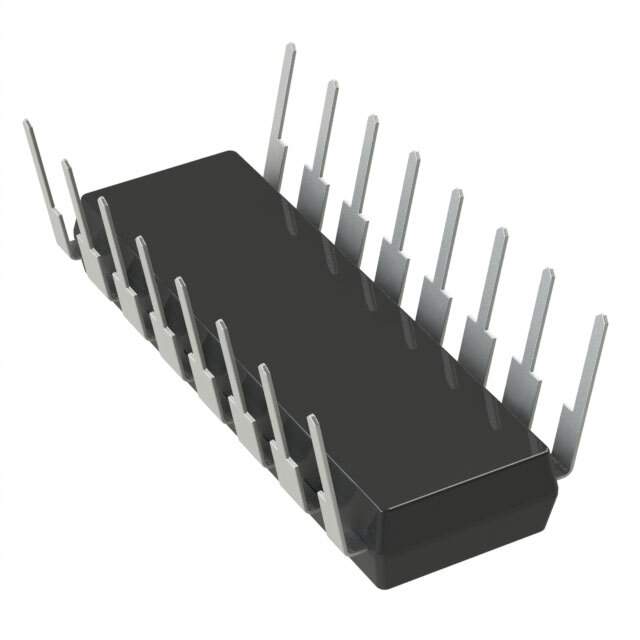

The ADG439FBNZ is housed in a 16-lead PDIP (Plastic Dual In-line Package), which ensures ease of integration into various circuit boards. Its robust design and reliable performance make it an excellent choice for designers looking for a high-quality switch with versatile application potential. Analog Devices Inc. provides detailed technical documentation, including datasheets and application notes, to support designers in implementing the ADG439FBNZ into their projects effectively.

With its combination of features, the ADG439FBNZ delivers the precision and reliability expected from Analog Devices Inc., making it a valuable component for any application requiring high-performance analog switching.
