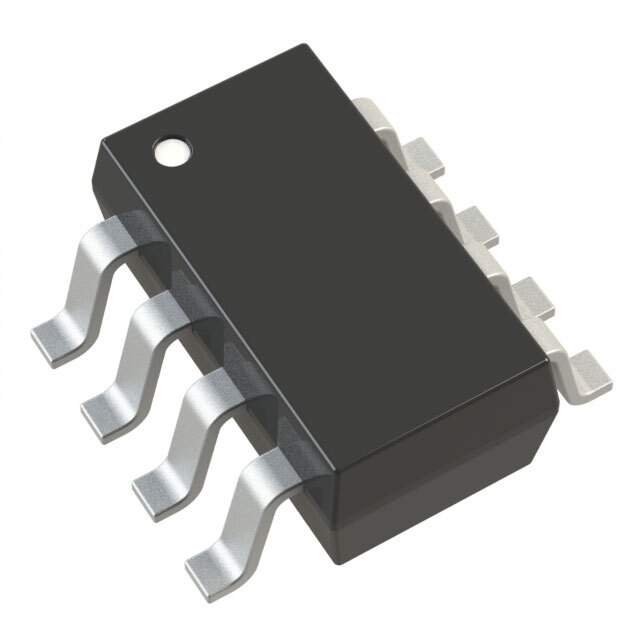

ADG3249BRJZ-REEL7 by Analog Devices Inc.

The ADG3249BRJZ-REEL7 is a high-performance, low-voltage, bidirectional logic level translator manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This compact device is designed to address the needs of mixed-voltage systems where reliable and efficient logic level translation is essential for communication between different voltage domains.

The device comes in a small, space-saving SOT-23 package, making it an ideal choice for space-constrained applications. It is part of the REEL7 packaging series, which indicates that it is provided in a tape and reel format suitable for automated assembly processes, enhancing manufacturing efficiency and reducing manual handling.

Key Features:

• Logic Level Translation: The ADG3249BRJZ-REEL7 provides bidirectional voltage level translation between 1.2V to 3.6V for the VCCA side and 1.65V to 5.5V for the VCCB side, making it versatile for interfacing between low-voltage and higher-voltage logic circuits.
• High-Speed Operation: With its ability to support high-speed signal propagation, this device is well-suited for applications that demand quick data transfer rates without compromising signal integrity.
• Low Power Consumption: It is designed for low power consumption, which is critical for battery-powered devices and helps to extend the operational lifetime of portable applications.
• No Direction Control: The bidirectional nature of the ADG3249BRJZ-REEL7 eliminates the need for direction control signals, simplifying the design and reducing the overall component count.
• Flow-Through Design: The pin configuration supports a flow-through design that simplifies PCB layout by allowing input/output traces to run directly from the device.

Applications:

• Mobile Devices
• Portable Electronics
• Data Communication Systems
• Multi-Voltage Digital System Interfaces
• Microcontroller/Microprocessor I/O Expansion

The ADG3249BRJZ-REEL7 is a robust solution for systems requiring reliable logic level translation. Analog Devices Inc.'s commitment to quality ensures that this device meets the stringent requirements of a wide range of applications, providing designers with a flexible and dependable interface solution.
