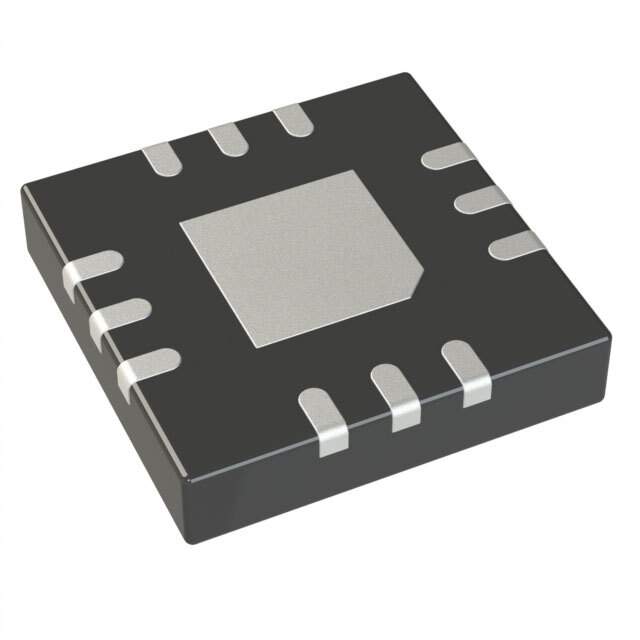

Product Overview: ADG1204YCPZ-REEL7 from Analog Devices Inc.

The ADG1204YCPZ-REEL7 is a high-performance, 4-channel analog multiplexer from Analog Devices Inc., a leader in high-precision electronic components. This compact and efficient device is part of the company's extensive range of switch and multiplexer products, designed to provide superior signal routing capabilities for various applications.

Key Features

• Channel Configuration: The ADG1204YCPZ-REEL7 features a 4:1 single-channel multiplexer configuration, allowing users to select one of four inputs to connect to a single output.
• Low On Resistance: The device boasts a low on resistance (typically 4.5 ohms), ensuring minimal signal distortion and preserving signal integrity across connections.
• Single Supply Operation: It operates from a single 3 V to 5 V power supply, simplifying design considerations and making it suitable for battery-powered and portable applications.
• High Off Isolation: The multiplexer provides high off isolation, which prevents signal leakage between channels when they are not in use, enhancing overall system performance.
• Low Power Consumption: With its low power consumption, the ADG1204YCPZ-REEL7 is ideal for power-sensitive applications, reducing the overall energy footprint of the system.
• ESD Protection: The device includes enhanced electrostatic discharge (ESD) protection, ensuring robustness and longevity even in harsh electrical environments.
• Wide Operating Temperature Range: It is designed to operate over an extended temperature range, making it reliable for industrial applications that may experience varying temperatures.
• Packaging: The ADG1204YCPZ-REEL7 is offered in a compact 16-lead LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications.
• Tape and Reel: The "-REEL7" suffix indicates that the product is provided in a tape and reel format, suitable for automated assembly processes.

Applications

The ADG1204YCPZ-REEL7 is versatile and can be used in a wide array of applications, including data acquisition systems, communication systems, relay replacements, and audio and video signal routing. Its reliability and precision make it an excellent choice for designers looking to optimize their systems for performance and efficiency.

Conclusion

As a product of Analog Devices Inc., the ADG1204YCPZ-REEL7 represents a blend of quality, performance, and innovation. With its robust feature set and compact design, this analog multiplexer is an essential component for engineers and designers who demand the best in signal routing technology.
