Product Overview: ADF5001BCPZ-RL7 by Analog Devices Inc.

The ADF5001BCPZ-RL7 is a high-performance, fractional-N frequency synthesizer designed and manufactured by Analog Devices Inc., a leader in the field of high-performance analog, mixed-signal, and digital signal processing integrated circuits. This device is part of the ADF5001 series and is well-suited for a wide range of applications, including wireless infrastructure, instrumentation, and aerospace and defense systems.

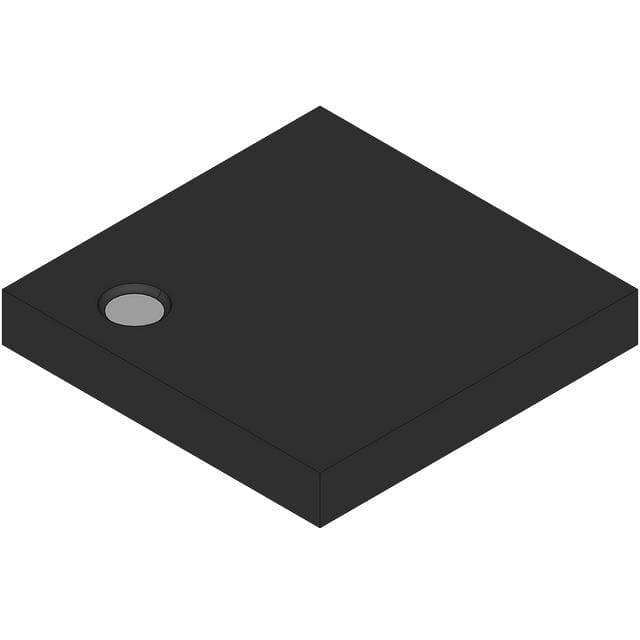

Encased in a compact LFCSP (Lead Frame Chip Scale Package), the ADF5001BCPZ-RL7 offers a blend of small form factor and high functionality, making it an ideal choice for space-constrained applications. The package size is 32-lead, 5mm x 5mm, and it is RoHS compliant, ensuring adherence to current environmental standards.

Key Features

• Frequency Range: The device supports a wide frequency range, which makes it versatile for various applications.
• Low Phase Noise Performance: It provides low phase noise performance, which is critical for high-fidelity signal synthesis and stable frequency generation.
• Programmable Output Power: The output power of the ADF5001BCPZ-RL7 is programmable, allowing users to tailor the output for specific application requirements.
• Integrated VCO: The inclusion of an integrated Voltage-Controlled Oscillator (VCO) simplifies the design process by reducing the need for external components.
• Low Power Consumption: Its design focuses on power efficiency, which is especially important for battery-powered devices or energy-sensitive systems.
• Serial Interface: The device features a serial interface for programming the synthesizer's settings, offering ease of use and flexibility in control.

Applications

The ADF5001BCPZ-RL7's robust feature set makes it suitable for a variety of applications, including:

• Wireless Infrastructure (e.g., base stations, cellular networks)
• Test and Measurement Equipment
• Satellite Communications Systems
• Phased Array Antenna Systems
• Radar Systems
• Other RF Applications

With its high level of integration and performance, the ADF5001BCPZ-RL7 from Analog Devices Inc. stands out as a top-tier choice for designers looking to implement a reliable and efficient frequency synthesizer in their next project.
