Product Overview: ADF4371BCCZ-RL7 by Analog Devices Inc.

The ADF4371BCCZ-RL7 is a high-performance, wideband synthesizer with integrated Voltage Controlled Oscillator (VCO) from Analog Devices Inc. This component is designed to deliver exceptional frequency control and stability for a range of applications, including wireless infrastructure, microwave point-to-point systems, electronic test and measurement, and satellite terminals.

Key Features

• Frequency Range: The ADF4371BCCZ-RL7 operates over a wide frequency range from 62.5 MHz to 32 GHz, making it one of the most versatile synthesizers in the industry.
• High Resolution: It features a fractional-N frequency synthesizer and integer-N frequency synthesizer, providing high resolution with a 32-bit modulus.
• Low Phase Noise Performance: The device is engineered to achieve low phase noise performance, which is critical for high-performance wireless systems.
• Programmable Dual Outputs: It includes dual differential outputs that are both programmable, allowing for flexible design options.
• Integrated VCO: The integrated VCO reduces the need for external components, simplifying design and saving board space.
• Output Mute Function: An RF output mute function enables the user to turn off the RF output, which is useful during system testing and integration.

Applications

• Wireless infrastructure (LTE, 5G)
• Microwave point-to-point and point-to-multipoint radios
• Test and measurement equipment
• Satellite communications terminals
• Phased array radar systems

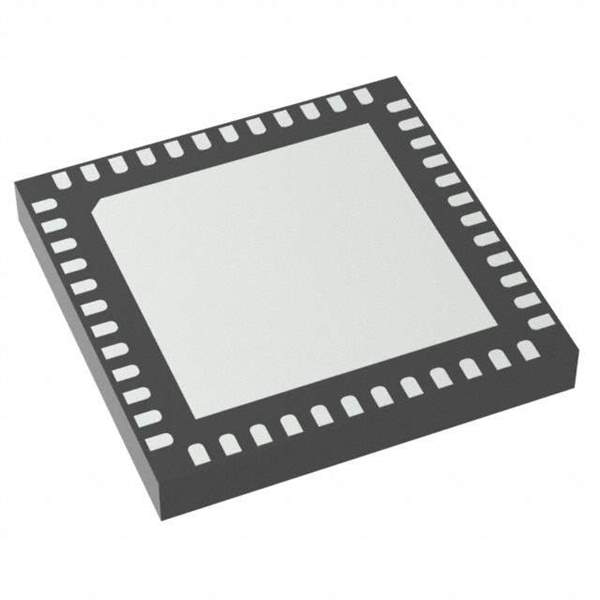

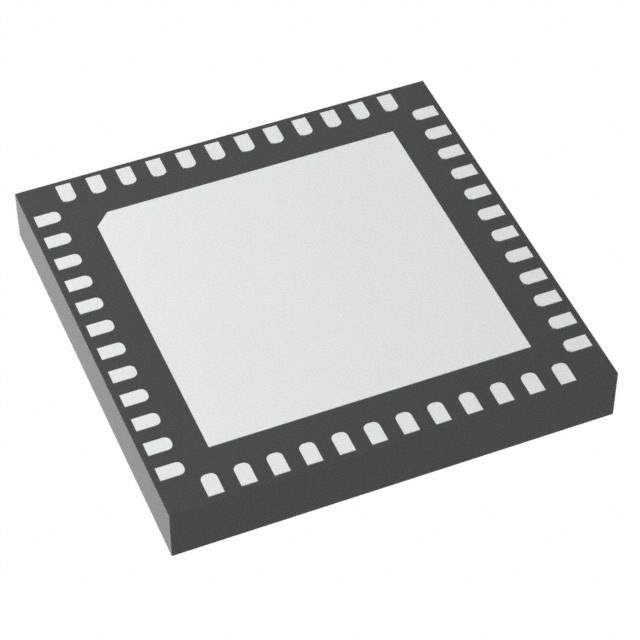

The ADF4371BCCZ-RL7 is available in a compact 7mm x 7mm LFCSP (lead-frame chip-scale package), which is well-suited for space-constrained applications. The device also supports a wide temperature range, ensuring reliable performance in diverse operating conditions. Analog Devices Inc. has a reputation for quality and reliability, and the ADF4371BCCZ-RL7 is no exception, offering both performance and durability for sophisticated electronic systems.

With its advanced features and broad frequency range, the ADF4371BCCZ-RL7 is a top choice for designers seeking a high-performance frequency synthesizer with integrated VCO functionality.
