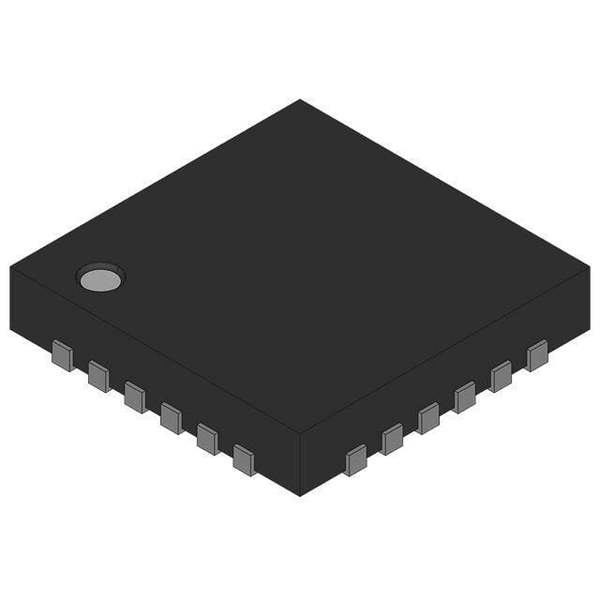

The ADF4252BCP is a cutting-edge frequency synthesizer designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This product stands out for its ability to generate a highly stable, accurate, and low-noise frequency spectrum, making it an ideal choice for a wide range of applications, including wireless communication systems, instrumentation, and aerospace industries.

Key Features

• High Frequency Range: The ADF4252BCP is capable of operating at very high frequencies, offering designers the flexibility to use it in systems that require precise frequency generation and modulation.
• Low Phase Noise Performance: With its exceptional phase noise characteristics, this synthesizer ensures the signal integrity required for high-performance RF systems, contributing to improved overall system SNR (Signal-to-Noise Ratio).
• Programmable Divider: The device includes a programmable divider, allowing users to easily adjust the output frequency to meet the specific needs of their application.
• Integrated VCO: The ADF4252BCP comes with an integrated Voltage-Controlled Oscillator (VCO), simplifying the design process by reducing the number of external components needed.
• Dual Output: It features dual differential RF outputs, enabling the device to drive a variety of RF components directly and providing greater design versatility.
• Power Efficient: Designed with power efficiency in mind, the ADF4252BCP operates with a low current consumption, making it suitable for battery-powered devices.

Applications

The versatile nature of the ADF4252BCP frequency synthesizer allows it to be used across multiple domains, including:

• Wireless Infrastructure (e.g., base stations, repeaters)
• Test and Measurement Equipment
• Satellite Communication Systems
• Private Mobile Radios
• Radar Systems

Technical Specifications

The ADF4252BCP is packaged in a compact 32-lead LFCSP (Lead Frame Chip Scale Package), offering a temperature range of -40°C to +85°C, which ensures reliable performance across diverse environmental conditions. The device is also supported by Analog Devices' comprehensive technical documentation and design resources, assisting engineers in accelerating their product development cycles.

For those looking to implement a high-performance frequency synthesizer in their next project, the ADF4252BCP from Analog Devices Inc. offers a blend of performance, efficiency, and reliability that is hard to match.
