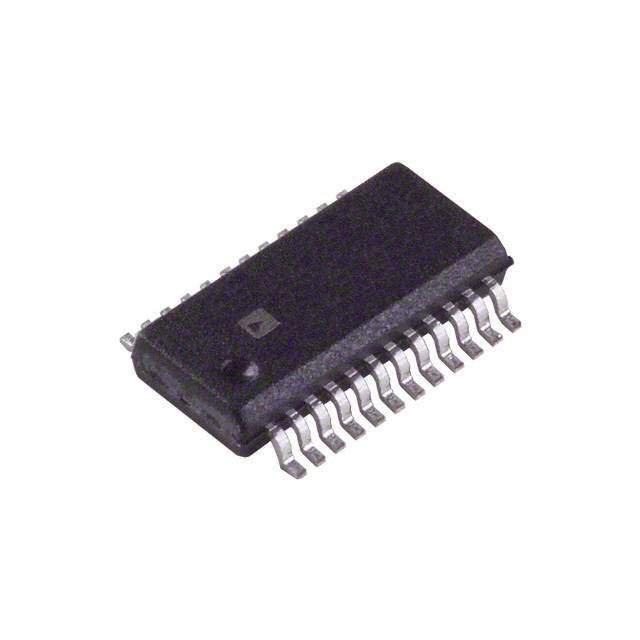

ADA4411-3ARQZ-R7

Part No ADA4411-3ARQZ-R7
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Video Amps and Modules
Description Integrated Triple Video Filter and Buffer with Selectable Cutoff Frequencies and Multiplexed Inputs for RGB, HD/SD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Output Type Rail-to-Rail
Number of Circuits 3
Operating Supply Current 57mA
Output Current per Channel 30mA
Dual Supply Voltage (±) 4.5 V ~ 12 V, ±2.25 V ~ 6 V
Mounting SMD
Package 24-SSOP (0.154", 3.90mm Width)
Manufacturer Package 24-QSOP
Win Source Part Number 1139420-ADA4411-3ARQZ-R7
Manufacturer Homepage www.analog.com
Popularity Medium
Supply and Demand Status Limited
Family Name ADA4411-3
Introduction Date April 05, 2005
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian ADA4411-3ARQZ-R7 CAD Model

Description

The ADA4411-3ARQZ-R7 is a high-performance, integrated triple video filter from Analog Devices Inc., designed to condition analog signals in high-definition video applications. This advanced component is tailored for processing RGB or YPbPr video signals, delivering superior image quality with minimal distortion.

Key Features

  • Integrated Triple Video Filter: The device features three independent video filters, making it ideal for RGB and component video signal processing.
  • High Definition Support: It supports high-definition video standards, ensuring compatibility with modern video applications and devices.
  • Low Power Consumption: The ADA4411-3ARQZ-R7 is designed for energy efficiency, which helps reduce power consumption in electronic systems.
  • Adjustable Filter Characteristics: Users can configure the filter characteristics to match specific application requirements, offering flexibility in design.
  • Small Package Size: The compact QSOP package allows for a space-saving design, making it suitable for use in applications where board space is at a premium.

Applications

The ADA4411-3ARQZ-R7 is versatile and can be used in various applications, including:

  • High-definition televisions (HDTVs)
  • Digital video recorders (DVRs)
  • DVD players and recorders
  • Video-on-demand systems
  • Set-top boxes

Technical Specifications

With a supply voltage range of 2.7V to 5.5V, the ADA4411-3ARQZ-R7 operates efficiently across various power environments. The device is characterized by its low differential gain and phase errors, which contribute to maintaining the integrity of the video signal. Additionally, its rail-to-rail output allows for maximum dynamic range, which is crucial in delivering high-quality video output.

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality, and the ADA4411-3ARQZ-R7 is no exception. Manufactured with precision and designed to meet stringent industry standards, this video filter ensures reliability and performance for professional and consumer video applications alike.

For detailed technical specifications, application notes, and support documentation, customers are encouraged to visit the Analog Devices Inc. website or contact their technical support team.
