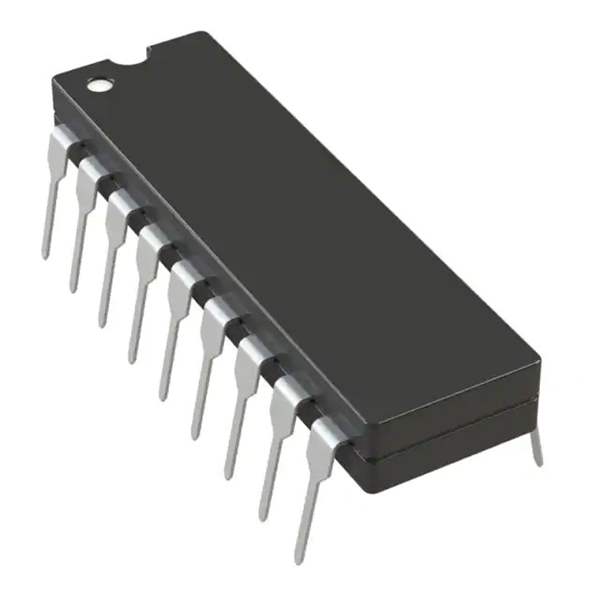

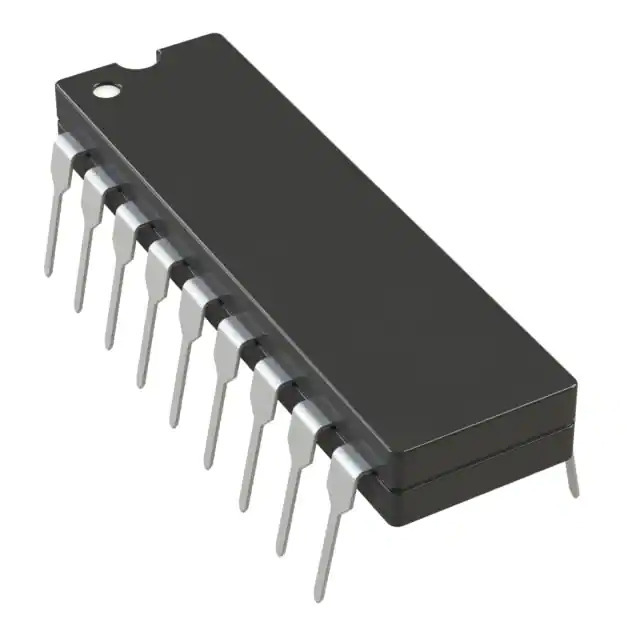

The AD977BN is a premier 16-bit analog-to-digital converter (ADC) from Analog Devices Inc., an industry leader in high-performance semiconductors. This precision ADC is designed to deliver exceptional accuracy and speed, making it an ideal choice for a wide range of applications, including medical imaging, test and measurement, and industrial control systems.

Key Features:

• High Resolution: The 16-bit resolution of the AD977BN ensures precise digital representation of the analog input signal, which is crucial for applications that demand high accuracy.
• Fast Throughput: With a maximum sampling rate of up to 200 kSPS (kilo-samples per second), the AD977BN provides rapid data acquisition, enabling real-time processing and control.
• Single +5V Supply Operation: The device operates on a single +5V power supply, simplifying power management in embedded systems.
• Flexible Input Range: Users can configure the input range to be either unipolar or bipolar, allowing for versatile interfacing with different signal sources.
• Low Power Consumption: The AD977BN is designed for efficient power usage, which is essential for portable and battery-powered devices.
• On-Chip Sample-and-Hold: The integrated sample-and-hold circuitry ensures accurate sampling of the input signal without the need for external components.
• Serial Interface: Equipped with a serial digital interface, the ADC can easily connect to microprocessors and digital signal processors, facilitating straightforward integration into digital systems.

Applications:

The AD977BN's combination of high resolution and fast sampling rates makes it perfectly suited for:

• Medical Imaging Systems
• Data Acquisition Systems
• Digital Signal Processing
• Instrumentation and Control Systems
• High-speed Modems

With its robust design and superior performance, the AD977BN from Analog Devices Inc. stands out as a top-tier ADC solution for professionals seeking reliability and precision in their electronic designs.
