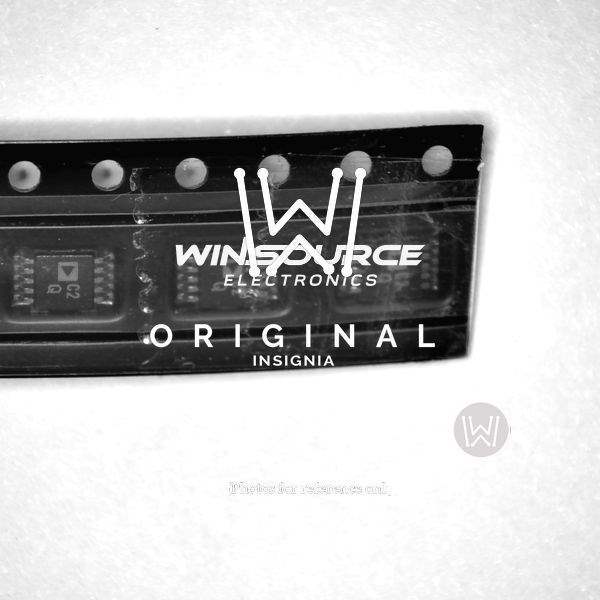

Analog Devices Inc. AD7992BRMZ-0REEL Precision ADC

The AD7992BRMZ-0REEL from Analog Devices Inc. is a high-performance, dual-channel 12-bit Analog-to-Digital Converter (ADC) that offers a compact and efficient solution for a wide range of applications requiring precise digital representation of analog signals. Designed with the modern engineer's needs in mind, this ADC is ideal for battery-powered devices, data acquisition systems, medical instruments, and industrial control processes where space is at a premium and power efficiency is crucial.

One of the standout features of the AD7992BRMZ-0REEL is its low power consumption. Operating on a single 2.7V to 5.5V supply, it is capable of performing conversions at rates up to 250 kSPS (kilo-samples per second), making it a versatile choice for both high-speed and power-sensitive applications. The device also includes an automatic power-down feature that significantly reduces power consumption between conversions, further extending battery life in portable devices.

The ADC comes in a compact 10-lead MSOP (Mini Small Outline Package) that is well-suited for space-constrained applications. It utilizes the I2C-compatible serial interface, which simplifies connectivity with microcontrollers and DSPs (Digital Signal Processors), allowing for easy integration into existing designs. The AD7992BRMZ-0REEL supports standard (100 kbps), fast (400 kbps), and high-speed (3.4 Mbps) I2C interface speeds.

Accuracy is another key aspect of the AD7992BRMZ-0REEL. It features a pseudo-differential input that reduces common-mode noise, thereby improving the signal integrity and accuracy of measurements. Additionally, the device includes a reference voltage input, allowing designers to set a custom reference level for the ADC to match the dynamic range of the analog input signal.

For design flexibility, the AD7992BRMZ-0REEL offers two single-ended or one differential input, enabling it to adapt to different sensor configurations. It also provides a sequence operation function that allows multiple conversions to occur automatically without further intervention from the host processor.

Overall, the AD7992BRMZ-0REEL from Analog Devices Inc. is a feature-rich, high-precision ADC that delivers exceptional performance in a small package, making it an excellent choice for designers looking to optimize their systems for both space and power efficiency.
