AD7699BCPZ: Precision Analog-to-Digital Converter from Analog Devices Inc.

The AD7699BCPZ is a state-of-the-art 16-bit, successive approximation, analog-to-digital converter (ADC) from Analog Devices Inc., a leader in high-performance semiconductors. This compact, high-precision ADC offers an impressive sampling rate and is designed to operate from a single 2.5 V power supply, making it an ideal choice for battery-powered devices and energy-efficient applications.

At the heart of the AD7699BCPZ is its charge redistribution successive approximation architecture, which allows for high-speed data acquisition with low power consumption. The device is capable of a 500 kSPS throughput rate, ensuring swift and accurate digital representation of analog signals. It supports a wide input voltage range, providing designers with flexibility in interfacing with various sensors and input signals.

The ADC features an 8-channel multiplexer, allowing multiple analog inputs to be connected and digitized. This makes it particularly suitable for multi-sensor systems, data acquisition, and process control applications where several measurements need to be taken simultaneously or in quick succession. The multiplexer can be configured for single-ended or differential inputs, further enhancing its adaptability to different signal types.

One of the key benefits of the AD7699BCPZ is its SPI-compatible serial interface, which simplifies connectivity with microcontrollers and digital signal processors. The ADC also includes an internal reference and reference buffer, reducing the need for external components and minimizing the overall solution footprint.

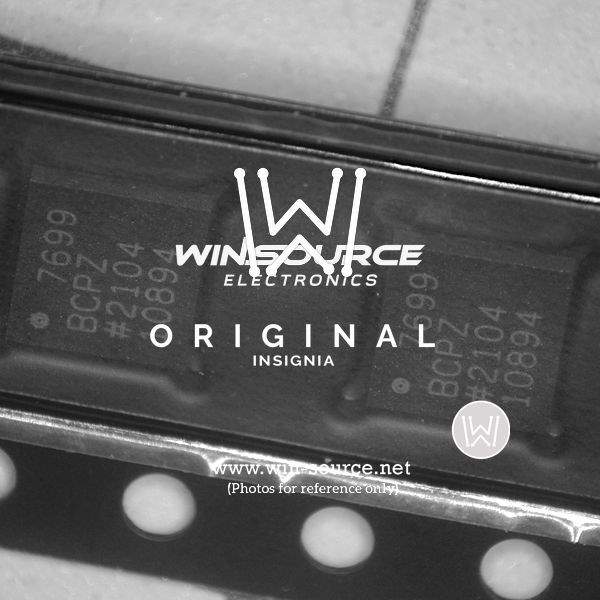

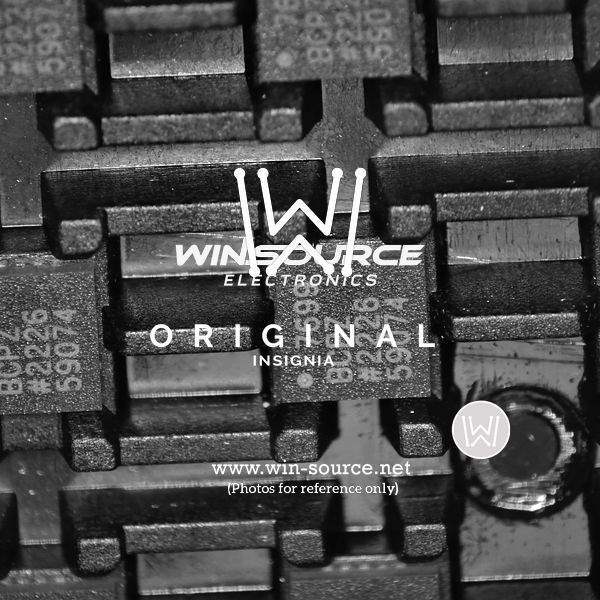

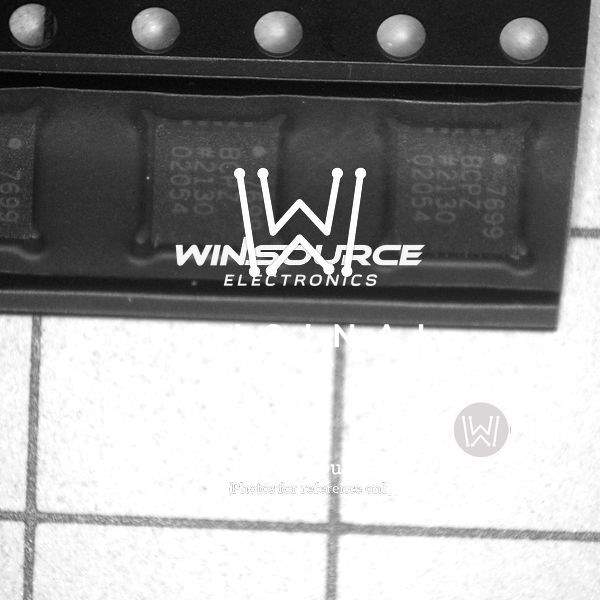

In terms of packaging, the AD7699BCPZ is available in a compact 20-lead LFCSP (Lead Frame Chip Scale Package), which is designed to save board space and is suitable for space-constrained applications. The device operates over an industrial temperature range of -40°C to +125°C, ensuring reliable performance across diverse operating conditions.

Overall, the AD7699BCPZ from Analog Devices Inc. represents a versatile and efficient solution for high-precision analog-to-digital conversion. Its combination of speed, precision, and low power consumption makes it an excellent choice for a wide range of applications in industrial, medical, and consumer electronics.
