Product Overview: AD7658YSTZ

The AD7658YSTZ from Analog Devices Inc. is a high-performance, multi-channel analog-to-digital converter (ADC) designed for data acquisition systems that require high data rates and precision. This ADC is part of Analog Devices' renowned data converter portfolio, which is widely recognized for its reliability and accuracy in processing analog signals.

Key Features

• Resolution: The AD7658YSTZ boasts a 16-bit resolution, providing fine detail in the digital representation of analog signals.
• Channels: It features three fully differential input channels, allowing for the simultaneous sampling of multiple signals, which is essential for phase-sensitive applications.
• Sampling Rate: With a maximum sampling rate of 250 kSPS (kilo-samples per second), this ADC is suitable for high-speed data acquisition, ensuring minimal latency in signal processing.
• Interface: The device includes a parallel interface, facilitating easy integration with a variety of microprocessors and digital systems.
• Voltage Supply: It operates on a dual supply voltage of ±5V, providing the flexibility needed for various system designs.

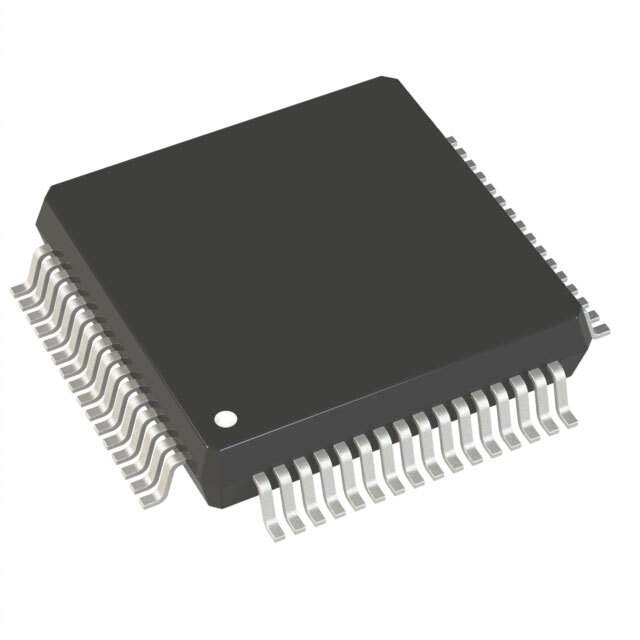

• Package: The AD7658YSTZ comes in a compact 48-lead LQFP (Low Profile Quad Flat Package), ensuring a small footprint on the circuit board.
• Temperature Range: This ADC is specified for operation over the industrial temperature range of -40°C to +85°C, making it robust for challenging environments.

Applications

The AD7658YSTZ is ideal for a wide range of applications that require accurate and fast analog-to-digital conversion. These include:

• Industrial control systems
• Medical imaging equipment
• Instrumentation and measurement devices
• Data acquisition systems
• Seismic data analysis equipment

Conclusion

With its high resolution, multiple channels, and fast sampling rate, the AD7658YSTZ from Analog Devices Inc. is an excellent choice for designers looking to implement a robust and precise data acquisition system. Its industrial temperature range and compact packaging further enhance its suitability for a variety of demanding applications.
