Introduction

The AD7528AQ is a monolithic dual 8-bit digital-to-analog converter (DAC) designed by Analog Devices Inc., which offers high-performance and reliability in a compact form factor. This precision analog component is well-suited for applications requiring dual DAC functionality with a single power supply, making it an ideal choice for a wide range of industrial, communication, and instrumentation systems.

Key Features

• Dual 8-Bit DAC: The AD7528AQ contains two independent DACs on a single chip, offering designers the flexibility to employ dual DAC configurations with reduced power consumption and board space.
• High-Speed Operation: With fast settling times, the AD7528AQ is capable of converting digital inputs to analog outputs with minimal delay, making it suitable for high-speed applications.
• Low Power Consumption: Designed for efficiency, this DAC operates on a single +5V to +15V power supply, ensuring low power usage without compromising on performance.
• Flexible Reference Inputs: The device features versatile reference input capabilities, allowing users to set the full-scale output voltage to match specific application requirements.
• Easy Interface: The AD7528AQ's simple digital interface is compatible with most microprocessors and digital systems, ensuring ease of integration into existing designs.

Applications

The versatility of the AD7528AQ makes it a prime candidate for a variety of applications, including but not limited to:

• Digital Signal Processing (DSP)
• Automatic Test Equipment (ATE)
• Robotics and Control Systems
• Data Acquisition Systems
• Battery-operated Devices

Quality and Reliability

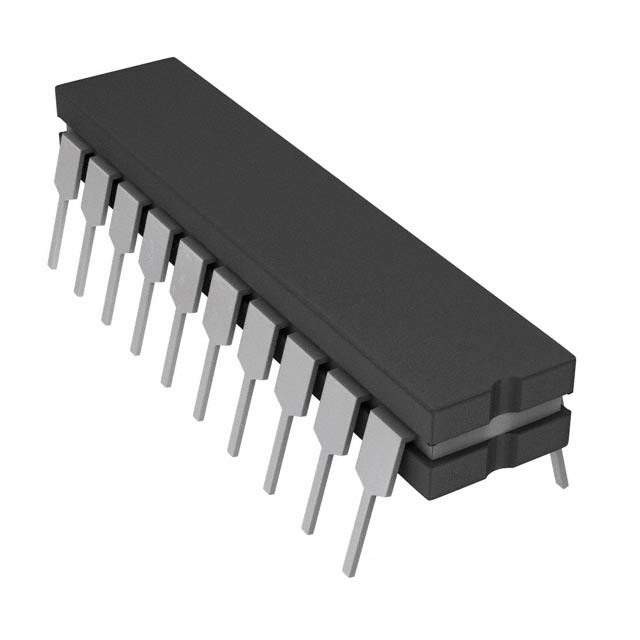

Analog Devices Inc. is renowned for its commitment to quality and the AD7528AQ is no exception. The device is available in a rugged, hermetically sealed 20-lead Ceramic DIP package, ensuring long-term reliability even in harsh environmental conditions. With its combination of dual DAC integration, high-speed performance, and low power consumption, the AD7528AQ stands as a testament to Analog Devices' dedication to excellence in analog technology.
