Analog Devices Inc. AD6645ASVZ-105: High-Performance IF Sampling ADC

The AD6645ASVZ-105 is a state-of-the-art 14-bit analog-to-digital converter (ADC) from Analog Devices Inc., designed to deliver exceptional performance in intermediate frequency (IF) sampling applications. This high-speed ADC operates at a sample rate of 105 MSPS (mega samples per second), making it an ideal choice for demanding applications in communications, radar systems, and medical imaging equipment.

Key Features

• Resolution: 14-bit accuracy ensures high-quality digital representation of the analog input signal.
• Sampling Rate: With a 105 MSPS sampling rate, this ADC is capable of converting high-frequency analog signals with precision.
• Input Bandwidth: The AD6645ASVZ-105 features a wide input bandwidth that supports IF sampling of signals up to the second Nyquist zone.
• Differential Inputs: Differential input configuration provides improved noise immunity and dynamic performance.
• SNR (Signal-to-Noise Ratio): It offers an excellent signal-to-noise ratio, enabling the capture of weak signals in noisy environments.
• On-Chip Reference: An integrated voltage reference simplifies the design by reducing external component requirements.

Applications

• Wireless and Wired Broadband Communications
• Radar and Satellite Subsystems
• Test and Measurement Equipment
• Medical Imaging Systems
• High-Performance Data Acquisition

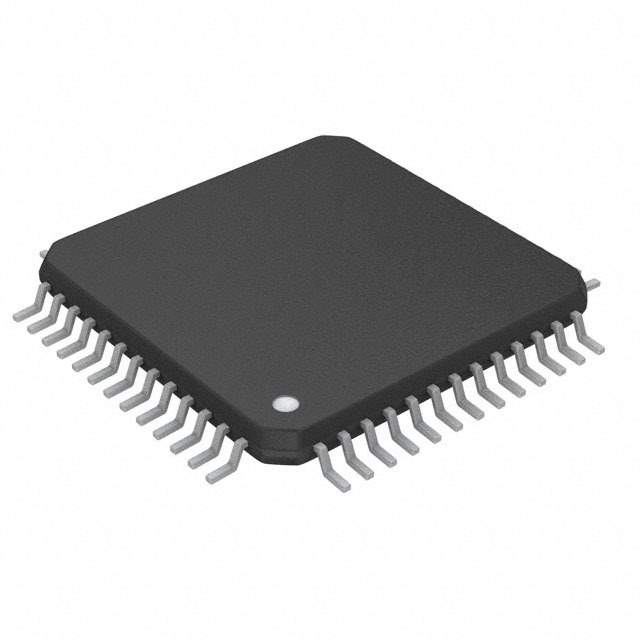

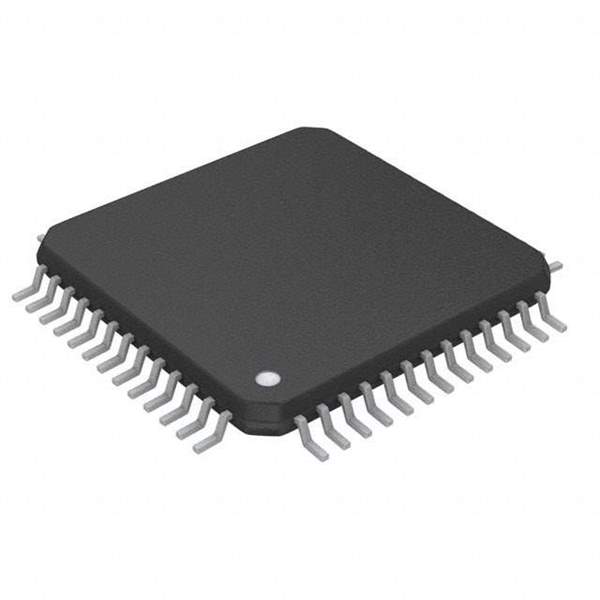

The AD6645ASVZ-105 is housed in a compact 52-lead LQFP (Low-profile Quad Flat Package) that fits easily into space-constrained designs. Its robust architecture is designed to perform reliably in harsh industrial environments, ensuring consistent operation over a wide temperature range.

With its combination of high-speed performance, accuracy, and reliability, the AD6645ASVZ-105 from Analog Devices Inc. is an excellent choice for system designers looking to improve the performance and efficiency of their high-speed signal processing applications.

For detailed technical specifications, application notes, and support resources, please visit the Analog Devices Inc. website or contact their customer support team.
