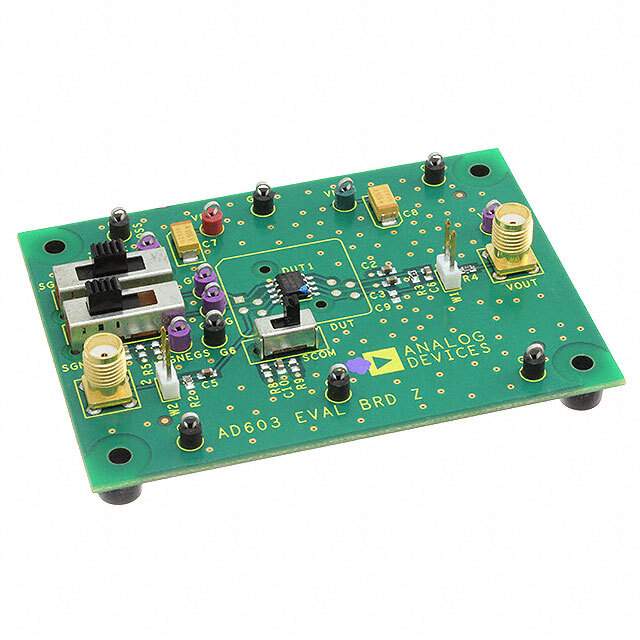

AD603-EVALZ Evaluation Board by Analog Devices Inc.

The AD603-EVALZ is a versatile and high-performance evaluation board designed by Analog Devices Inc. to showcase the capabilities of the AD603, a low noise, voltage-controlled amplifier for use in RF and IF AGC systems. This evaluation board is an essential tool for engineers and designers looking to test and implement the AD603 in their applications, providing a straightforward platform for easy experimentation and analysis.

Key Features

• Adjustable Gain Control: The AD603-EVALZ offers a 90 dB range of voltage-controlled gain, easily adjusted via onboard potentiometers or external control voltages, allowing for precise tuning for a variety of signal conditions.
• High Bandwidth: With a bandwidth of 90 MHz at a gain of 0 dB, the evaluation board can handle a wide range of frequencies, making it suitable for diverse RF and IF applications.
• Low Noise Figure: The board boasts a low noise figure of 2.9 dB at maximum gain, ensuring that signal integrity is maintained throughout the amplification process.
• Easy Integration: Designed with user convenience in mind, the AD603-EVALZ includes SMA connectors for quick and reliable RF connections, as well as test points for easy access to various nodes within the circuit.
• Power Supply Flexibility: The evaluation board operates over a wide supply voltage range, accommodating various system power requirements.

Applications

The AD603-EVALZ is ideal for a broad spectrum of applications, including:

• Wireless communication systems
• Cellular base stations
• Radar and satellite systems
• Medical imaging equipment
• Professional audio equipment

Support and Documentation

Analog Devices Inc. provides comprehensive support and documentation for the AD603-EVALZ, including detailed schematics, layout files, and application notes. This ensures that users can maximize the utility of the evaluation board and accelerate the development of their projects.
