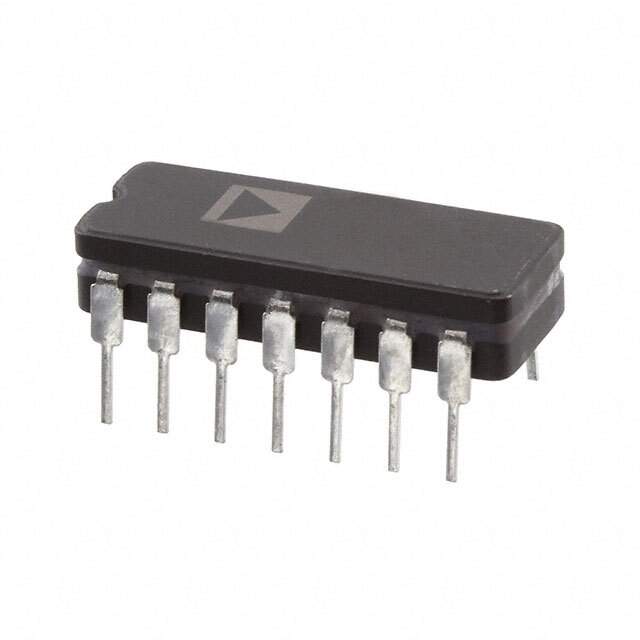

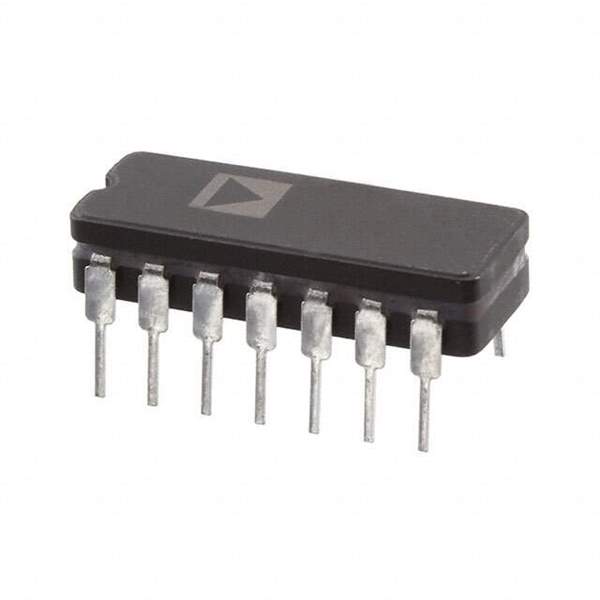

The AD594CQ, manufactured by Analog Devices Inc., is a monolithic integrated circuit specifically designed for thermocouple applications. It is an exceptional solution for temperature sensing and control systems, providing a direct Celsius (Centigrade) temperature measurement when connected to a type J or type K thermocouple.

Key Features

• Integrated Cold Junction Compensation: The AD594CQ includes an on-chip ice point compensation circuit which eliminates the need for an external cold junction temperature sensor.
• High Accuracy: This IC delivers a high degree of accuracy with a built-in amplifier that has a low drift of 10µV/°C, ensuring precise temperature readings.
• Easy to Use: Designed to simplify thermocouple signal conditioning, the AD594CQ can be used with minimal external components.
• Linearization: The device provides a linear output of 10mV/°C for type J thermocouples and 10.8mV/°C for type K, reducing the complexity of the signal processing required.
• Versatile Power Supply Range: It operates with a power supply range from +5V to +15V for single supply or ±5V to ±15V for dual supply applications.

Applications

The AD594CQ is ideal for a wide array of applications including:

• Process Control Systems
• Temperature Monitoring Systems
• Industrial Control
• Data Acquisition Systems
• Thermocouple Instrumentation

Quality and Reliability

Analog Devices Inc. is known for its commitment to high-quality products, and the AD594CQ is no exception. It is available in a 14-lead Ceramic DIP (Cerdip) package, ensuring robustness and reliability for industrial environments.

Easy Integration

With its straightforward interface and compatibility with digital systems, the AD594CQ can be easily integrated into existing designs, making it a go-to choice for engineers looking to streamline their temperature measurement solutions.

For detailed specifications, application notes, and evaluation kits, visit the Analog Devices Inc. website or contact their support team for technical assistance.
