Introducing the AD589MH Voltage Reference from Analog Devices Inc.

Analog Devices Inc., a leader in high-performance semiconductors, presents the AD589MH, a monolithic two-terminal IC that provides a precise 1.235-volt temperature-compensated voltage reference. The device operates as a bandgap voltage reference and is designed for stable and reliable performance across a wide range of operating conditions.

The AD589MH stands out with its low dynamic impedance and excellent temperature stability, making it an ideal choice for precision voltage reference applications in both digital and analog circuits. With its high accuracy and stability, the AD589MH is well-suited for use in power supplies, instrumentation, and data acquisition systems.

Key Features of the AD589MH:

• Output Voltage: Precisely 1.235 volts over the full military temperature range.
• Temperature Range: The device is operational over a wide temperature range, ensuring consistent performance in various environments.
• Low Dynamic Impedance: The impedance of the output is less than 1 ohm, which is relatively low and improves the stability of the reference voltage under varying load conditions.
• High Stability: Exhibits less than 10 ppm/°C temperature coefficient, providing a reliable reference point for precision applications.

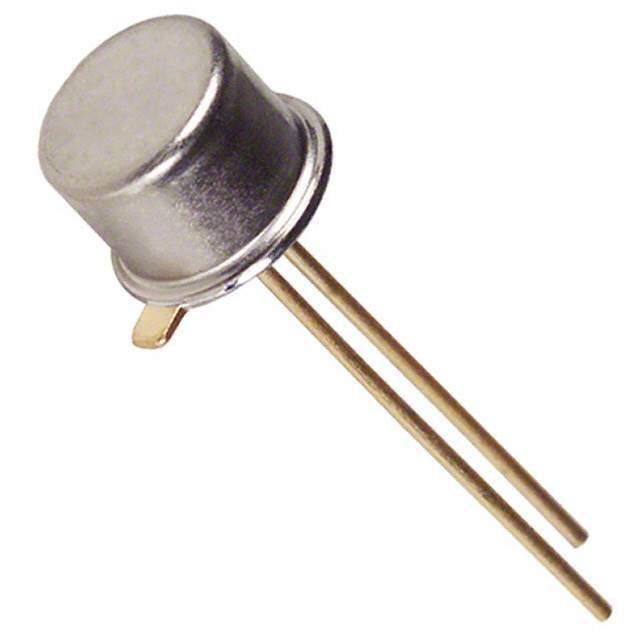

• Package Options: Available in a hermetically sealed metal can, the AD589MH is designed to withstand harsh conditions and ensure long-term reliability.

Applications:

• Portable Instrumentation
• Data Conversion
• Power Supplies
• Industrial Control Systems
• Precision Calibration Systems

The AD589MH from Analog Devices Inc. is an exceptional choice for designers requiring a dependable and precise voltage reference. Its robust design and consistent performance under varying conditions make it a versatile component for a multitude of applications. Whether you are designing a sophisticated measurement instrument or a simple power supply, the AD589MH provides the accuracy and reliability needed to ensure your system operates at its best.

For detailed specifications and application guidance, refer to the official datasheet provided by Analog Devices Inc. and consider the AD589MH for your next project's voltage reference needs.
