The AD5754RBREZ, manufactured by Analog Devices Inc., is a high-performance quad-channel digital-to-analog converter (DAC) designed for precision electronic applications. It features a 16-bit resolution that ensures accurate and high-quality voltage output, making it ideal for industrial control systems, automated test equipment, and digital gain and offset adjustment applications.

Key Features:

• High Resolution: The 16-bit resolution offers fine-grain control over output signals, providing precise and stable voltage outputs.
• Quad Channel: With four independent DAC channels, the AD5754RBREZ can manage multiple output signals simultaneously, which is crucial for complex systems requiring multi-axis control.
• Serial Interface: The device includes a serial peripheral interface (SPI) that allows for easy communication with microcontrollers or other digital systems.
• Flexible Output Ranges: The DAC supports various selectable voltage output ranges, including bipolar and unipolar configurations, to accommodate a broad spectrum of application requirements.
• Integrated Output Amplifiers: Each channel has its dedicated output amplifier, which can drive capacitive loads and ensure a high degree of linearity across the entire output range.
• On-Chip Reference: An internal precision voltage reference minimizes external components and ensures consistent performance.
• Thermal Protection: The device features over-temperature protection, safeguarding the DAC against potential damage due to excessive heat.

Applications:

• Industrial Control Systems
• Automated Test Equipment
• Data Acquisition Systems
• Process Control
• Digital Gain and Offset Adjustment

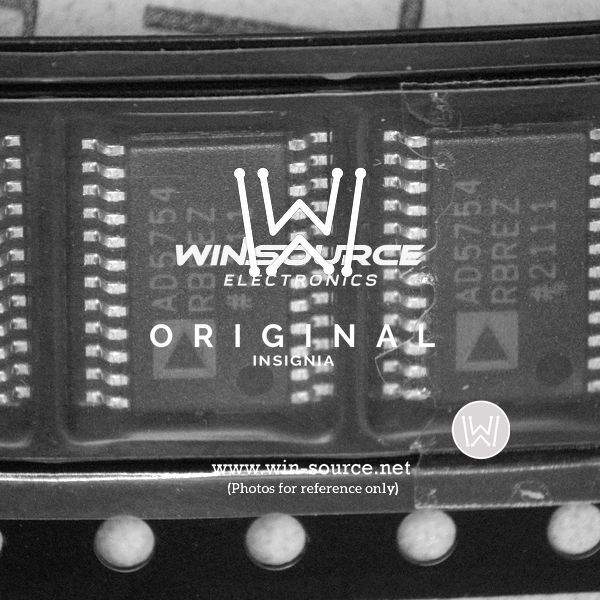

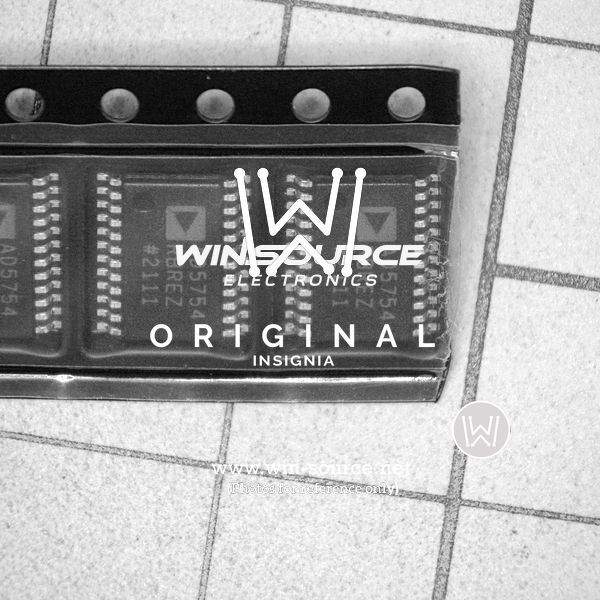

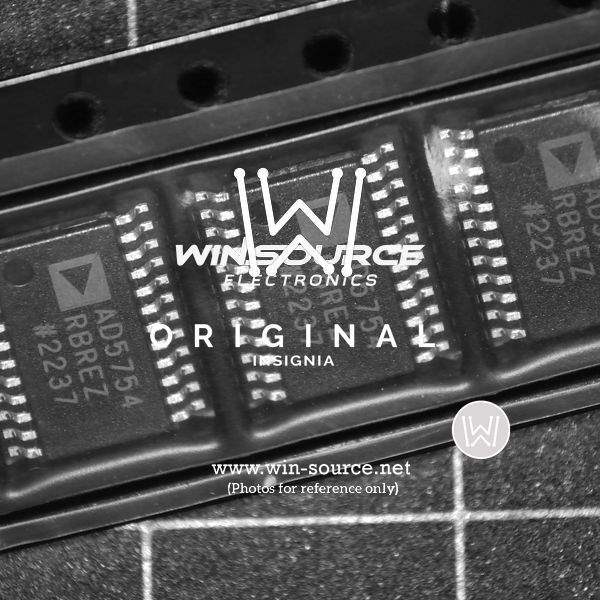

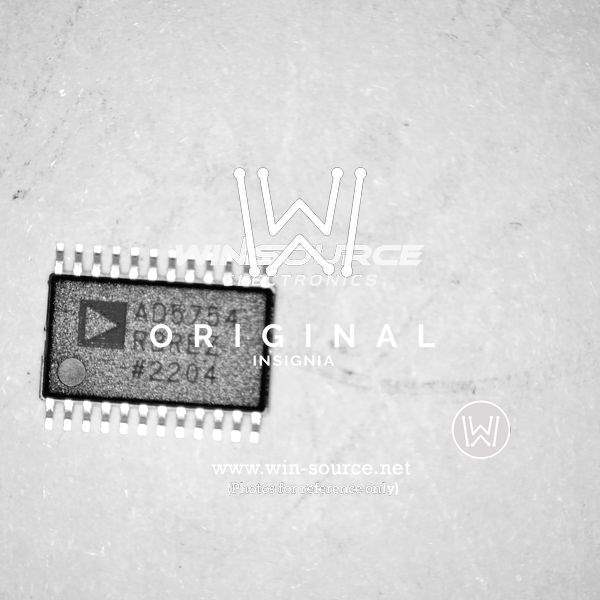

The AD5754RBREZ from Analog Devices Inc. is packaged in a compact, surface-mount, 24-lead TSSOP (thin shrink small outline package), which is suitable for space-constrained applications. Its robust design and versatile features make it an essential component for engineers and designers looking to develop precise and reliable electronic systems.
