AD5734RBREZ Digital-to-Analog Converter

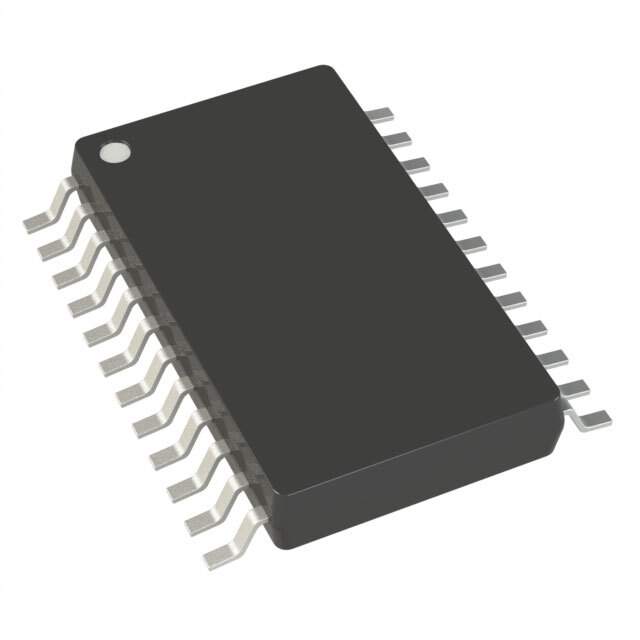

The AD5734RBREZ is a high-precision, quad-channel, 12-bit, serial input, voltage output digital-to-analog converter (DAC) from Analog Devices Inc., designed to meet the stringent requirements of industrial and communication applications. This versatile DAC offers a flexible interface and is housed in a compact 24-lead TSSOP package, making it ideal for space-constrained applications.

One of the standout features of the AD5734RBREZ is its wide output range, which can be programmed to one of two user-selectable spans: 0 V to 5 V, or 0 V to 10 V. This programmability allows for greater flexibility in various design scenarios, accommodating different voltage requirements without the need for additional external components.

The AD5734RBREZ is built with the user in mind, incorporating an on-chip output amplifier, precision voltage reference, and a digital interface that supports high-speed SPI, QSPI™, MICROWIRE™, and DSP-compatible interfaces. This integration reduces the need for external circuitry and simplifies the design process, enabling designers to focus on other aspects of their system.

Reliability and accuracy are key aspects of the AD5734RBREZ. It boasts excellent thermal performance and a robust design that ensures stable operation over its entire temperature range, which typically extends from -40°C to +105°C. The DAC's precision is further enhanced by its low glitch energy and on-chip power-on reset, which clears the DAC output to zero volts or midscale, depending on the status of the reset select pin (RSTSEL).

For applications requiring tight synchronization, the AD5734RBREZ offers a LDAC function, allowing the DAC outputs to be updated simultaneously or at a specific time, which is critical for coordinated control systems. Additionally, the device includes a clear function that resets the DAC registers to zero, providing a rapid return to a known state in the event of an error or system reset.

In summary, the AD5734RBREZ from Analog Devices Inc. is a feature-rich, reliable solution for designers looking to implement precise voltage output control in their systems. Its combination of flexibility, ease of use, and high performance makes it an excellent choice for a broad range of industrial and communication applications.
