The AD5680BCPZ-1RL7 is a cutting-edge digital-to-analog converter (DAC) component manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This particular model is part of the nanoDAC series, which is renowned for its small size and high accuracy. The AD5680BCPZ-1RL7 is designed to meet the stringent requirements of modern electronic systems, providing a reliable and precise analog output that is derived from digital input values.

Key Features:

• Resolution: The AD5680BCPZ-1RL7 offers a 16-bit resolution, ensuring fine granularity and high precision in the analog output.
• Output Range: This DAC supports a 0 V to 5 V output range, making it versatile for a wide range of applications that require a standard voltage level.

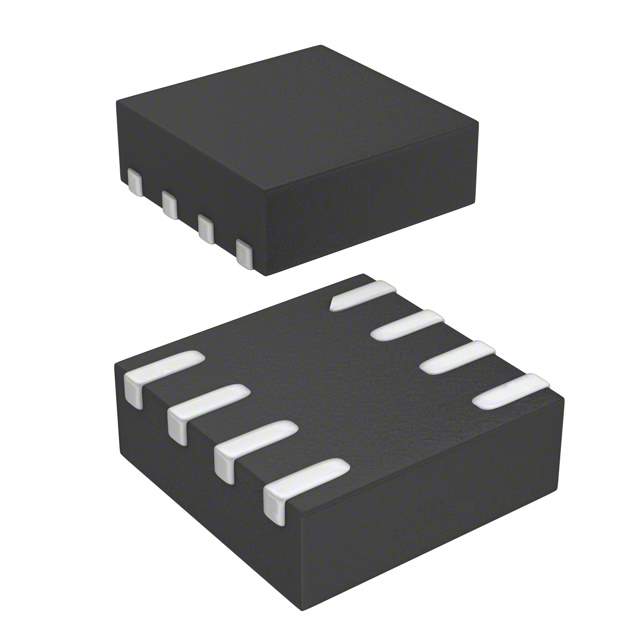

• Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the AD5680BCPZ-1RL7 is designed for space-constrained applications.
• Interface: It features a simple, three-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, allowing for easy integration into various digital systems.
• Accuracy: With an integral nonlinearity (INL) of ±0.004% of FSR (Full-Scale Range) max, the DAC provides precise and stable performance.
• Power Consumption: Low power operation is a hallmark of the nanoDAC series, and the AD5680BCPZ-1RL7 exemplifies this with its 4.5 V to 5.5 V single supply voltage and low power dissipation.

Applications:

The AD5680BCPZ-1RL7 is suitable for a broad array of applications, including but not limited to:

• Process Control: Automation systems that require precise control of actuators or valves.
• Data Acquisition Systems: Where accurate conversion from digital to analog signals is critical.
• Medical Equipment: Devices such as diagnostic equipment and patient monitoring systems where accuracy and reliability are paramount.
• Communication Systems: For modulation/demodulation purposes where signal integrity is essential.

With its robust feature set and versatile performance capabilities, the AD5680BCPZ-1RL7 from Analog Devices Inc. is an excellent choice for designers looking to enhance the precision and efficiency of their electronic systems.
