Analog Devices Inc. AD5660BRJZ-2500RL7 Precision DAC

The AD5660BRJZ-2500RL7 is a high-precision digital-to-analog converter (DAC) from Analog Devices Inc., designed to offer a blend of performance, power efficiency, and size that is ideal for a wide range of applications. This 16-bit DAC is part of the nanoDAC® series, which is known for its compact footprints and high accuracy, making it a perfect solution for space-constrained designs such as portable battery-powered devices, medical instruments, and industrial control systems.

One of the standout features of the AD5660BRJZ-2500RL7 is its on-chip precision output amplifier that enables rail-to-rail output swing. This feature allows the DAC to output voltages very close to the power supply rails, maximizing the dynamic range available in the system. The DAC operates from a single 2.7V to 5.5V supply, providing excellent flexibility for various power environments.

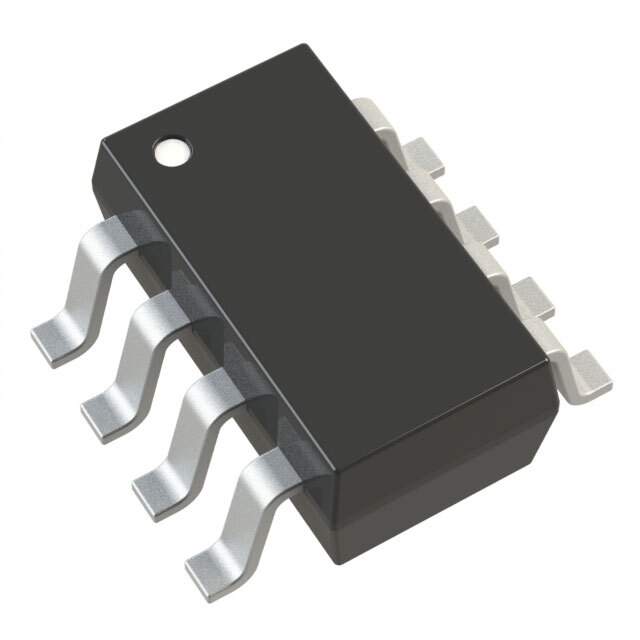

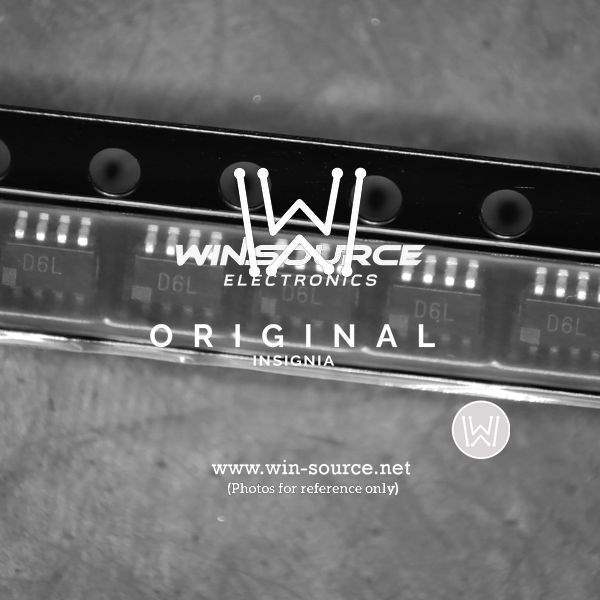

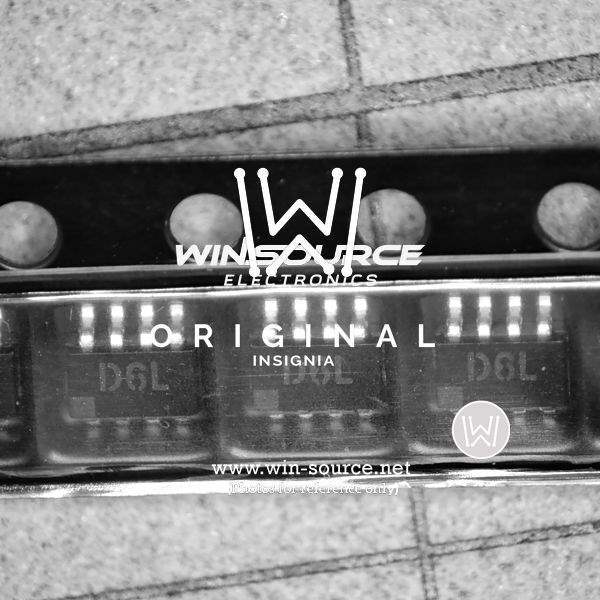

The device comes in a compact 8-lead SOT-23 package, which is highly beneficial for designs where board space is at a premium. Despite its small size, the AD5660BRJZ-2500RL7 does not compromise on performance, delivering a settling time of just 5 µs to within ±0.5 LSB, making it suitable for high-speed, precision applications.

Communication with the AD5660BRJZ-2500RL7 is facilitated through a 3-wire serial interface that is SPI, QSPI™, MICROWIRE™, and DSP compatible, ensuring easy integration with most microcontrollers and digital systems. The DAC also features a power-down mode, which reduces the current consumption to 200 nA at 5V, further enhancing its suitability for power-sensitive applications.

For designers looking to achieve precise voltage control and conversion with minimal power consumption and space requirements, the AD5660BRJZ-2500RL7 from Analog Devices Inc. is an excellent choice. Its combination of performance, size, and ease of use makes it a versatile component for a myriad of precision analog output tasks.

Key Features:

• 16-bit resolution and accuracy
• Rail-to-rail output amplifier
• Single 2.7V to 5.5V supply operation
• Ultra-compact 8-lead SOT-23 package
• Fast settling time: 5 µs to ±0.5 LSB
• Low power consumption with power-down mode
• SPI, QSPI™, MICROWIRE™, and DSP compatible interface
