The AD5626BCPZ-REEL7 is a high-precision digital-to-analog converter (DAC) from Analog Devices Inc., designed to meet the rigorous demands of industrial, communication, and healthcare applications. This compact component features a 16-bit resolution, ensuring accurate analog output signals from digital input values.

Key Features

• Resolution: 16-bit DAC, offering fine granularity for a wide range of applications.
• Output Type: Voltage output, providing a straightforward interface to analog systems.
• Interface: Serial (SPI, QSPI, MICROWIRE), facilitating easy integration with most microcontrollers and digital systems.
• Settling Time: Fast settling time for responsive system performance.

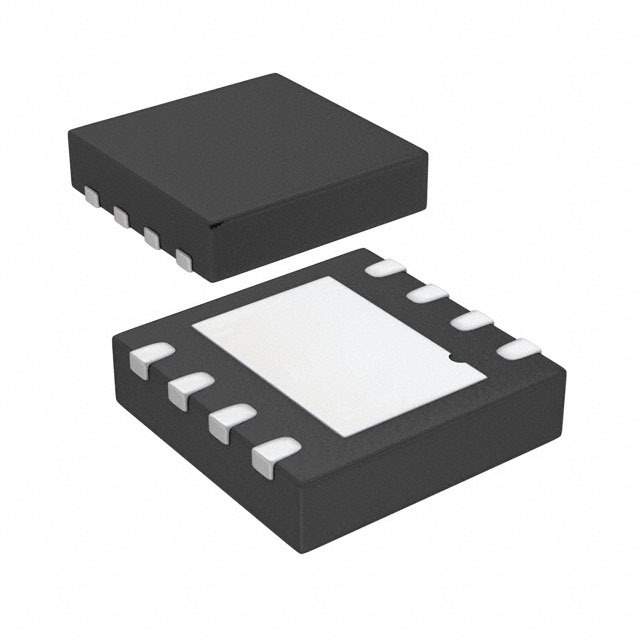

• Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications.
• Supply Voltage: Operates on a 2.7 V to 5.5 V supply, accommodating a variety of power environments.
• Accuracy: Incorporates on-chip output buffer and reference with high accuracy to ensure reliable performance.
• Temperature Range: Specified performance from -40°C to +125°C, suitable for harsh environments.

Applications

The AD5626BCPZ-REEL7 is versatile and can be used in a myriad of applications. It is particularly well-suited for:

• Process control and automation systems
• Data acquisition systems
• Digital gain and offset adjustment
• Portable battery-powered instruments
• Waveform generation

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the AD5626BCPZ-REEL7 is no exception. It is manufactured to the highest standards, ensuring consistent performance and reliability in your application. Whether you are developing a sophisticated industrial system or a sensitive medical device, this DAC provides the precision and durability you need.

Ordering Information

The product is available in a tape and reel format (REEL7), which is suitable for automated assembly processes, ensuring efficient manufacturing and scalability for high-volume production.
