AD5541ARZ Precision DAC from Analog Devices Inc.

The AD5541ARZ is a state-of-the-art precision digital-to-analog converter (DAC) designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors for signal processing applications. This particular model is part of their extensive range of DACs that offer outstanding accuracy and stability, making it an ideal choice for demanding applications that require high precision and low power consumption.

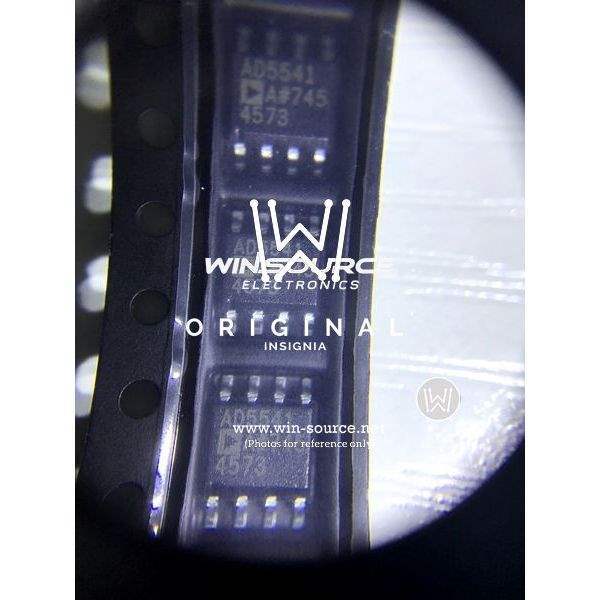

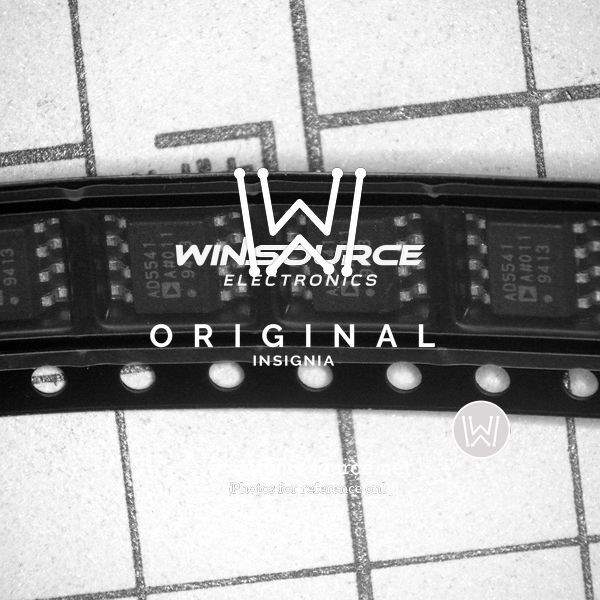

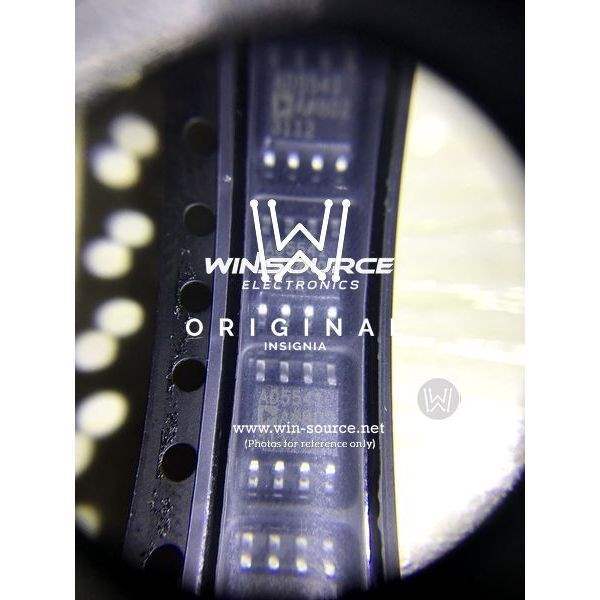

Encased in a compact SOIC package, the AD5541ARZ offers a 16-bit resolution which ensures fine granularity in analog output. This level of resolution is particularly beneficial in applications such as automated test equipment, data acquisition systems, and industrial control systems where precise control and measurement are paramount.

One of the key features of the AD5541ARZ is its monotonicity, which guarantees that the analog output increases monotonically with the input digital code. This characteristic is crucial for control loop stability and ensures that the output does not create unpredictable behavior in the system it is controlling.

The device operates on a single 5 V supply and features a low power consumption design, with a typical current draw of just 230 µA, making it an excellent choice for portable and battery-powered applications. Additionally, the AD5541ARZ incorporates a power-down mode that further reduces the current consumption to 200 nA, offering significant power savings for systems where energy efficiency is critical.

Another significant advantage of the AD5541ARZ is its high-speed serial interface, which supports standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. This flexibility allows for easy integration into a wide range of digital systems without the need for complex interfacing or additional components.

The AD5541ARZ also boasts excellent temperature stability with a maximum of 2 ppm/°C of total unadjusted error (TUE). This ensures consistent performance over a wide temperature range, making it suitable for use in environments with varying temperatures.

In summary, the AD5541ARZ from Analog Devices Inc. is a highly precise, reliable, and versatile DAC solution that meets the needs of sophisticated electronic systems. Its excellent performance specifications and ease of integration make it a top choice for engineers and designers looking to implement precise analog control in their digital systems.
